for Swivel Mounting Clamps

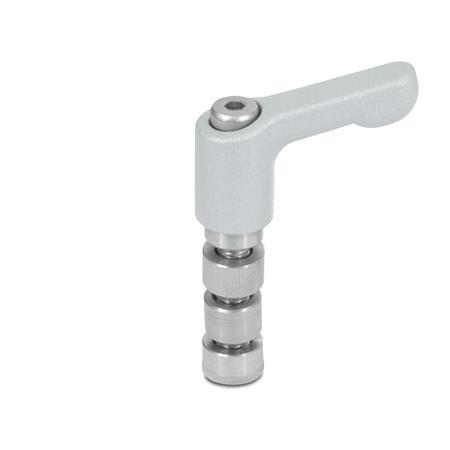

GN 511.1 Clamping Kits

Type

S	With socket cap screw DIN 912
K	With adjustable hand lever

Show filter

d₁	l₂	d₂	d₃	d₄	l₁	l₃	l₄	l₅	l₆	h₁	h₂	Swivel mounting clamp k-dimension

M 4	16	7,5	6,9	7,5	22	11,5	4,5	4	4	18,5	23	16
M 5	20	9	8,4	9	30	14	6	5	5	24,5	30,5	20
M 6	25	10,5	9,9	10,5	45	18,5	6,5	7	6	24,5	35	25
M 6	30	10,5	9,9	10,5	45	23,5	6,5	7	6	24,5	35	30

Filter combination produces no result.

Specification

Handle
Zinc die casting
Powder coated
Silver, RAL 9006, textured finish

Threaded insert,
distance sleeve,
centering bushing,
threaded bushing
Stainless steel AISI 303

Socket cap screws DIN 912
Stainless steel AISI 304

Stainless Steel Characteristics

RoHS

Information

With clamping kits GN 511.1 swivel mounting clamps GN 482, T-swivel mounting clamps GN 483 as well as attachment swivel mountings clamps GN 484 with the same k dimensions can be combined to mounting clamp joints.

The centering bushing positions and supports the swivel mounting clamps in relation to each other. During assembly, the knurled threaded bushing is inserted by the clamping screw itself and by pressing into one of the two swivel mounting clamps and is then used to clamp the articulated joint.

The appropriate clamping kits are indicated in the dimensional tables of the various swivel mounting clamps.
