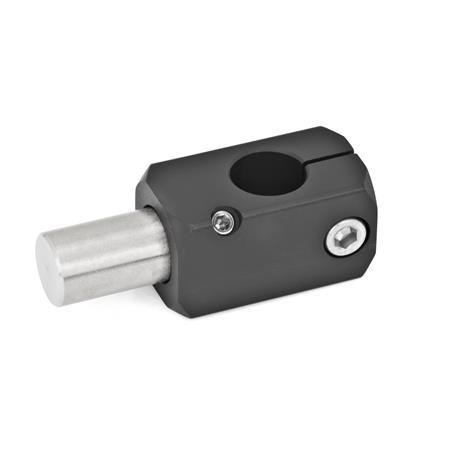

GN 476 T-Mounting Clamps

Type

A	with Bore
W	with Bolt

Show filter

d₁ Bore for shaft tol. h11	d₂ Type A	d₃ Type W	d₄ Clamping thread	d₅	k	l₁	l₂	l₃	l₄	s Square	t	Clamping kits for d₄

B 8	B 8	8	M 4	M 4	16	16	13	26	5,5	-	8	GN 511-M4-16
B 10	B 10	10	M 5	M 5	20	17	15,5	31,5	7	8	10	GN 511-M5-20
B 12	B 12	12	M 5	M 5	20	19	16,5	35,5	8	10	12	GN 511-M5-20
B 15	B 15	15	M 6	M 6	25	21	20	43,5	10	12	15	GN 511-M6-25
B 16	B 16	16	M 6	M 6	25	24	20	45	11	-	16	GN 511-M6-25
B 20	B 20	20	M 6	M 6	30	26	22	51	12	16	18	GN 511-M6-30

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

Bolt (Type W)
Stainless steel AISI 303

Socket cap screws DIN 912
Stainless steel AISI 304

Grub screw DIN 913 (Type A)
Stainless steel AISI 304

Grub screw DIN 915 (Type W)
Stainless steel AISI 304

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Accessory

Clamping Kits GN 511

Information

The T-mounting clamps GN 476 (Type W) are an alternative to twistable two-way mounting clamps GN 475 if high angular forces are required.

In the standard version, the clamping screw at the clamping thread d₄ is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 511 (article code see table of dimensions).
