Foot Plastic / Screw Steel, Fixed

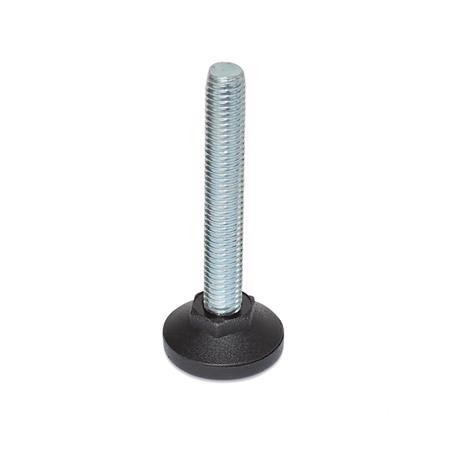

GN 839 Leveling Feet

ELESA original design LX-LS Info

Show filter

d₁	d₂	l₁							l₂	A/F	Static load in kN (see information)

25	M 6	26	36	56	64	-	-	-	11	13	1,5
25	M 8	19	24	34	54	74	-	-	11	13	2,5
30	M 6	24	34	54	-	-	-	-	12	17	1,5
30	M 8	18	23	33	53	73	-	-	12	17	2,5
30	M 10	18	23	33	43	53	63	73	12	17	3
40	M 8	14	22	32	52	72	-	-	13,5	17	2,5
40	M 10	22	32	42	52	62	72	102	13,5	17	3
40	M 12	52	72	102	-	-	-	-	13,5	17	5
50	M 10	48	68	98	-	-	-	-	17	19	3
50	M 12	48	68	98	-	-	-	-	17	19	5
60	M 12	46	66	96	-	-	-	-	19	24	5
60	M 16	66	106	146	-	-	-	-	19	24	7,5

Filter combination produces no result.

Specification

Foot
Plastic
Technoplymer (Polyamide PA)

Black, matte finish
Temperature resistant up to 100 °C

Screw
Steel
Zinc plated, blue passivated

Plastic Characteristics

RoHS

Information

Leveling feet GN 839 are used for applications in cases where no jointed link is required between foot and adjusting screw. The cross slot drive at the underside has been designed for rapid pre-assembly.

The value for the load-bearing capacity given in the table is an approximate value which, depending on conditions of use, may cause the plastic leveling feet to break. The appropriate safety coefficient must be taken into account.
