Crystal Clear Plastic, with Marking Ring

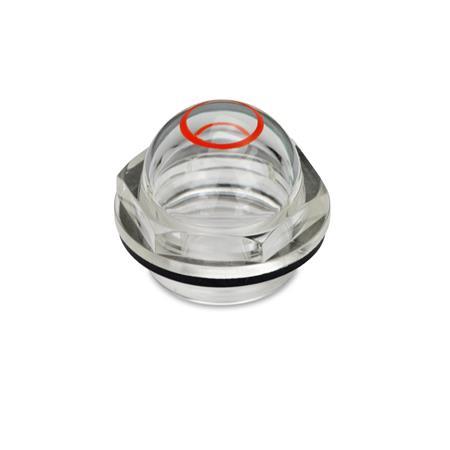

GN 546.1 Oil Sight Glasses, resistant up to 100°C
ELESA original design: HCFE.
| d1 | d2 | d3 | d4 | l1 | l2 | s | recommed tightening torque in Nm |
|---|---|---|---|---|---|---|---|
| 19 | G 1/2 | 26 | 7 | 10,5 | 16 | 22 | 4 ... 6 |
| 25 | G 3/4 | 31,5 | 12 | 10,5 | 19,5 | 27 | 6 ... 8 |
| 31 | G 1 | 42 | 15 | 11 | 24 | 36 | 8 ... 10 |
Filter combination produces no result.
Specification
Plastic
Crystal clear Polyamid (PA 6-T)
Red marking ring
Pad printing
Seal
Rubber NBR (Perbunan®)
RoHS
Crystal clear Polyamid (PA 6-T)
- High mechanical strength
- Temperature resistant up to 100 °C
- Solvent resistant,
but not suitable for alcohol
Red marking ring
Pad printing
Seal
Rubber NBR (Perbunan®)
RoHS
Accessory
Mounting Nuts GN 7430Information
Oil sight glasses GN 546.1 are mainly used as oil circulation indicators.
They are practically indestructible, even if high torque is applied there is no danger of breakage.
Assembly instruction:
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
| How to order |
| ||||
GN 546.1-31-G1 |
