for Semi-Split Shaft Collars

GN 7062.30 Damping Washers

Show filter

Dimension of matching shaft collars d₁	d₂ Bore series 1	Bore series 2	Dimension damping washers d₃	d₄ Bore series 1	Bore series 2	b ±0,2	s

30	B 12	-	28	13	-	2	2,1
32	B 14	-	30	15	-	2	2,1
36	B 15	B 16	34	16	17	2	2,1
42	B 18	B 20	39	19,5	21,5	3	3
48	B 22	B 25	45	23,5	26,5	3	3
55	B 28	B 30	52	29,5	31,5	3	3
60	B 32	B 35	57	33,5	36,5	3	4
65	B 40	-	62	41,5	-	3	4

Filter combination produces no result.

Specification

Elastomer (PUR)

70 Shore A
Temperature resistant up to 80 °C
Transparent

Adhesive film

Acrylate dispersion, solvent-free
Strong adhesion

Elastomer Characteristics

Highlights / Product information shaft collars

RoHS

Information

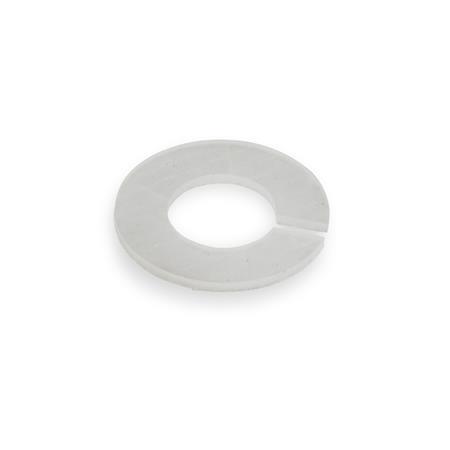

Damping washers GN 7062.30 are designed as accessories for semi-split shaft collars and are attached with the help of an adhesive film, preferably on the groove-less side of the shaft collar. They absorb mild shocks and have a sound-damping effect when the shaft collars come into contact with other components.

Generally, after the protective film is removed, the damping washers can be attached to any suitable and clean surface.

Semi-split stainless steel shaft collars GN 7062.3 are generally offered with assembled damping washers.
