GN 282 Swivel Clamp Connector Joints

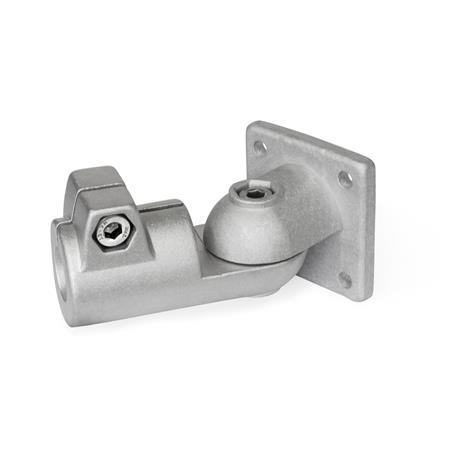

Swivel Clamp Connector Joints GN 282 thumbnail

Swivel Clamp Connector Joints GN 282 sketch

Type

S	Stepless adjustment
T	Adjustment with 15° division (serration)

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore	b Swivel width	d₂	k	l₁	l₂	m₁	m₂	t	x₁	x₂	y₁	y₂	z₁ Screw location	z₂ Screw locations	Accessory recom. hand lever GN 911 for z₁ l₃	for z₂ l₃

B 20	40	6,5	42,5	104,5	52	32,5	72	7	60	42	60	42	M8-25	M8-30	-	63 \| 78
B 25	40	6,5	42,5	104,5	52	32,5	72	7	60	42	60	42	M8-25	M8-30	63 \| 78	63 \| 78
B 30	40	6,5	42,5	104,5	52	32,5	72	7	60	42	60	42	M8-25	M8-30	63 \| 78	63 \| 78
B 40	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	-	78 \| 92
B 42	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	-	78 \| 92
B 45	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	78 \| 92	78 \| 92
B 48	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	78 \| 92	78 \| 92
B 50	65	11	74	167	77,5	52	115	14	105	74	105	74	M10-50	M10-55	78 \| 92	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

Swivel clamp connector joints GN 282 are an assembly of of the swivel clamp connectors GN 272 and GN 276.

For the version with stepless adjustment (type S) swivel clamp connectors with a centring step are used.

The clamping bore is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

At the screw location z₁, the socket cap screw reduces the bore cross-section for clamping.

For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
