Disk-Shaped, with Internal Thread

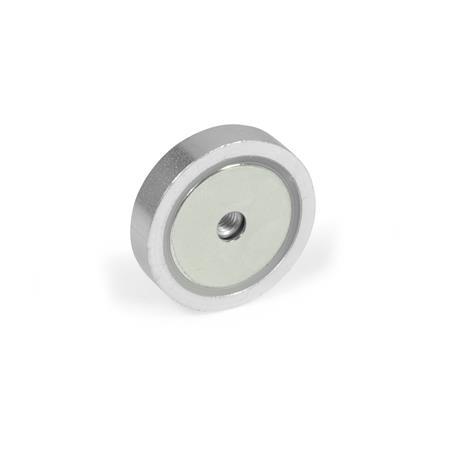

GN 50.5 Retaining Magnets

Show filter

d₁	d₂	d₃	h	t	Nominal magnetic forces in N

10 ±0,1	M 3	4,5	4,5 ±0,1	1,5	19
13 ±0,1	M 3	4,5	4,5 ±0,1	1,5	40
16 ±0,1	M 3	6	4,5 ±0,1	1,5	75
20 ±0,1	M 4	6	6 ±0,1	2,5	105
25 ±0,1	M 4	4,5	7 ±0,2	3	160
32 ±0,1	M 5	5,5	7 ±0,2	3	330
40 ±0,1	M 5	10,5	8 ±0,2	6	500
47 +0,2/-0,1	M 8	6,8	9,2 +0,2/-0,3	6	740
50 ±0,1	M 8	10,5	10 ±0,2	5,5	800
63 ±0,1	M 10	11,7	14 ±0,2	8,5	1100
75 -0,3/-0,5	M 10	11,7	15 ±0,2	8,5	1750

Filter combination produces no result.

Specification

Housing
Steel, zinc plated

Material of the magnet
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C

Plastic cover
Technopolymer (Polyamide PA)

Plastic Characteristics

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Information

Retaining magnets GN 50.5 are combined with a steel housing and a plastic ring and the plastic cover into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

For diameter d₁ ≥ 50 the adhesive surface is lagged with an all over plastic cover.

To ensure that the magnetic properties are not impaired negatively, the fixing screws should be made of non-magnetic material, like for example stainless steel, brass or plastic.
