GN 154 Hinges

ELESA original design CFD. Info

Type

A	2x2 threaded blind bores
B	2x threaded blind bores / 2x threaded studs
C	2x threaded blind bores / 2x bores for socket cap screws
D	2x2 threaded studs
E	2x threaded studs / 2x threaded blind bores
F	2x threaded studs / 2x bores for socket cap screws

Show filter

l₁ Nominal dimension	Actual dimension	l₂ Nominal dimension	Actual dimension	d₁	d₂	d₃	h₁	h₂	h₃	l₃	l₄	l₅	l₆ ≈	l₇	l₈	m₁ ±0,2	m₂ ±0,2	t₁	t₂

26	26,5	30	30,5	M 3	3,3	2,5	12,5	9,5	19	22,5	7	15	7,5	13	4	15	15	4	4
34	34	40	40,5	M 4	4,3	4	16,5	12,5	25	29,5	9,5	20	9,3	18	6	20,2	20	5,5	5,5
41	40,5	48	48,5	M 5	5,5	5	20	15	30	35	11	24	12	17	8	23	24	6,5	6,5
56	56	66	66	M 6	6,5	6	27,5	21	42	48,5	15	33	16,7	16	10	31,8	33	9	10

Filter combination produces no result.

Specification

Plastic (Polyamide PA)

Black, matte finish
Temperature resistant up to 80 °C

Pin
Stainless steel AISI 303

Threaded bushings
Brass, nickel plated

Threaded studs
Steel, nickel plated

Plastic Characteristics

Stainless Steel Characteristics

Load Rating Information for Plastic Hinges

RoHS

Information

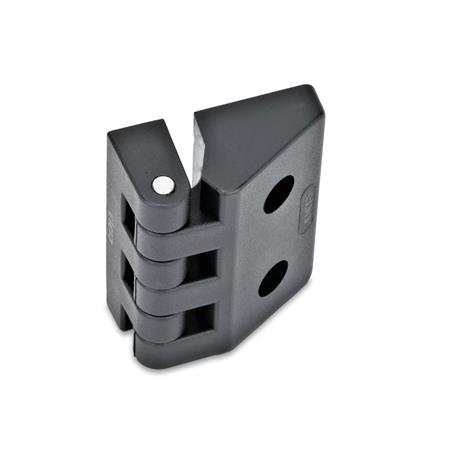

The hinges GN 154 consist of two different wings of unequal length. They are preferably used when thick walled doors or door profiles have to be screwed on to thin walled housings.
