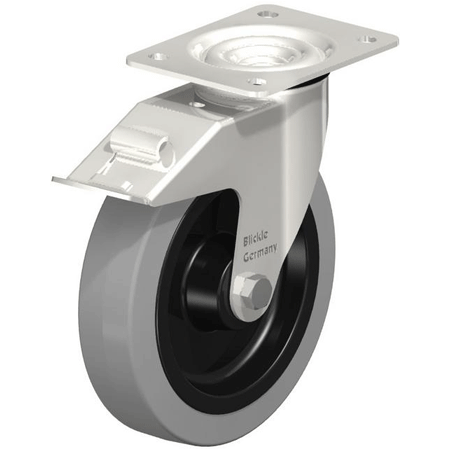

HA 5131
Radlager
| R |
| d1 | b | h1 | l1 | l2 | l4 | l6 | d2 | a | T |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 32 | 102 | 85 | 100 | 55 - 60 | 76 - 80 | 9 | 38 | 120 |
| 100 | 38 | 125 | 85 | 100 | 55 - 60 | 76 - 80 | 9 | 36 | 150 |
| 125 | 40 | 150 | 85 | 100 | 55 - 60 | 76 -80 | 9 | 40 | 150 |
| 160 | 50 | 195 | 110 | 140 | 75 - 80 | 105 - 105 | 11 | 60 | 300 |
| 200 | 50 | 235 | 110 | 140 | 75 - 80 | 105 - 105 | 11 | 65 | 300 |
Filter combination produces no result.
Specification
RoHS
Information
see also...
| How to order |
| ||||||||
HA 5131-100-R-NI-FIX |
RoHS compliant:
-
-
Weight:
-
-
