Zinc Die Casting

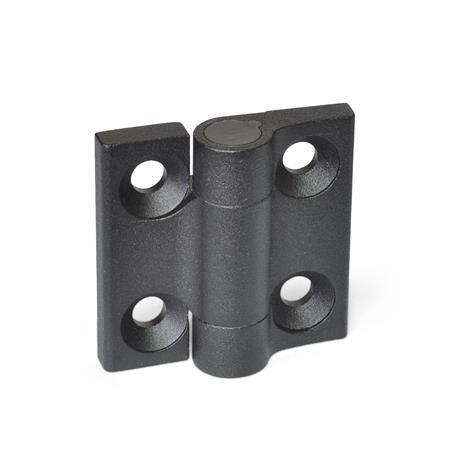

GN 437.1 Hinges
Type
| A | 2x2 bores for countersunk screws |
| l1 | l2 | d | h1 | h2 | h3 | h4 | l3 | m1 | m2 |
|---|---|---|---|---|---|---|---|---|---|
| 60 | 60 | 8,3 | 18,5 | 7,5 | 9,5 | 19 | 20 | 36 | 36 |
Filter combination produces no result.
Specification
Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Cover cap
Plastic (Polyacetal POM)
Temperature resistant up to 80 °C
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Cover cap
Plastic (Polyacetal POM)
Temperature resistant up to 80 °C
RoHS
Accessory
Stainless Steel Spacer Plates GN 2370Stainless Steel Plates with Tapped Holes GN 2372
Information
Hinges GN 437.1 of zinc die casting fit perfectly into a wide range of environments thanks to their timeless design.
Moreover, they are matched with the GN 437 functional hinge family as complementary hinges.
see also...
| How to order |
| ||||||||||
GN 437.1-ZD-60-60-A-SR |
