Rectangular-Shaped, with Rubber Jacket

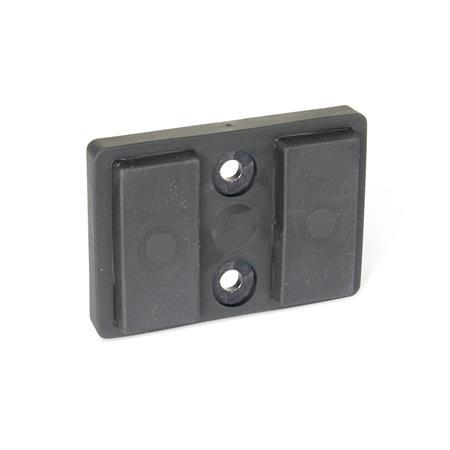

GN 57.2 Retaining Magnets

Type

A	With 1 internal thread
B	With 2 internalthreads
D	With 2 bores

Show filter

l₁	d₁ Type A / B	Type D	b₁	b₂	d₂	h₁	h₂	h₃	l₂	l₃	m

70	M 5	5,5	50	43,5	12	13	8	6	61,5	20,5	27,5

Filter combination produces no result.

l₁	Nominal magnetic forces F_H1 in N (no air gap) HF Type A	Type B	Type D	ND Type A	Type B	Type D	Nominal magnetic forces F_H2 in N (6 mm air gap) HF Type A	Type B	Type D	ND Type A	Type B	Type D

70	45	45	45	290	290	290	16	11	14	68	72	70

Filter combination produces no result.

Specification

Steel part
Zinc plated

Materials of the magnet:

Hard ferriteHF
Temperature resistant up to 200 °C
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C

Rubber jacket
Elastomer (TPE)
≈ 50 Shore A (Magnetic surface)
≈ 90 Shore A (Mounting surface)
BlackSW

Elastomer Characteristics

RoHS

Information

The retaining magnets GN 57.2 with rubber jacket form a system together with the steel part that is especially strong, shielding the magnet, increasing the depth of its effect and optimally concentrating the magnetic flux on the rubberized magnetic surfaces. This makes these magnets particularly well suited for use on surfaces that may have thick coats of paint or feature rounded or uneven shapes.

The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
