with Safety Function

GN 7336.8 Clamping Indexing Plungers

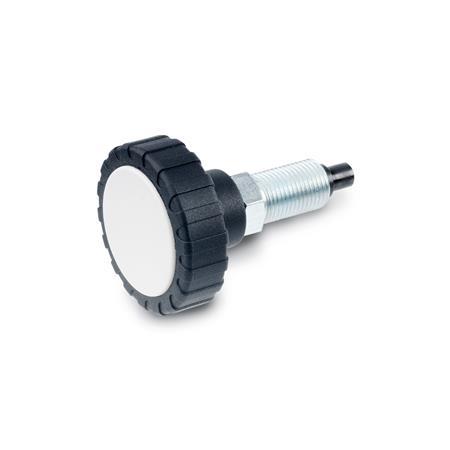

Clamping Indexing Plungers GN 7336.8 thumbnail

Clamping Indexing Plungers GN 7336.8 sketch

Show filter

d₁	d₂	d₃ Pin -0,02/-0,04 Bore G7		d₄	d₅	l₁	l₂	l₃	l₄ min.	l₅	A/F	Spring load in N ≈ initial	end

42	M 16 x 1,5	6	8	11	19	60	9	34	23	26	19	14	26
53	M 16 x 1,5	6	8	11	24	66	9	34	23	26	19	14	26

Filter combination produces no result.

Specification

Knurled knob 7336
Plastic (Polyamide PA)
Black, matte

Cover cap
Plastic (Polyamide PA)
Light gray, matte

Fixing thread steel
Zinc plated, blue passivated

Plunger pin
Steel nitrided and blackened

Application Video

List of Indexing Plunger Types

Load Rating Information

ISO Fundamental Tolerances

Metric ISO fine thread DIN 13

Plastic Characteristics

RoHS

Information

Clamping indexing GN 7336.8 plungers are an advanced development of the GN 7336.7 clamping knobs with indexing plunger.

Like the latter, they are used for positioning, securing and clamping adjusting elements at the same time. This configuration ensures that the indexing pin cannot be pulled from the indexing bore by turning the knurled knob, but only be deliberately pulling the handle (safety function).

How to order
