with Sealed Bolt

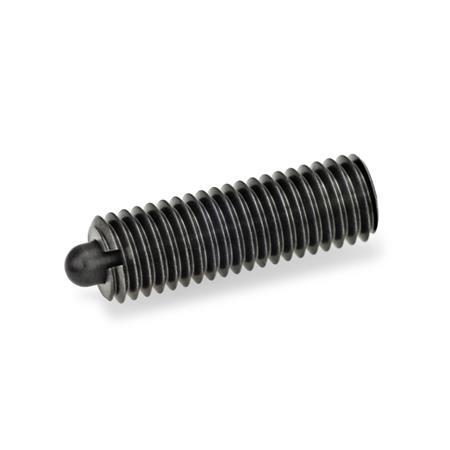

GN 616.1 Spring Plungers
Type
| S | Steel, standard spring load |
| SS | Steel, high spring load |
| d1 | d2 | Length l | w compression | Spring load in N ≈ standard (Type S) initial | end | Standard load in N ≈ high (Type SS) initial | end | Code No. Screwdriver |
|---|---|---|---|---|---|---|---|---|
| M 8 | 3,8 | 26 | 3 | 9 | 24 | 17 | 39 | GN 611.5-M10 |
| M 10 | 4 | 28 | 3,5 | 15 | 30 | 22 | 43 | GN 611.5-M10 |
| M 12 | 6 | 35 | 4 | 24 | 50 | 40 | 80 | GN 611.5-M12 |
| M 16 | 7,5 | 40 | 5 | 36 | 58 | 44 | 113 | GN 611.5-M16 |
Filter combination produces no result.
Specification
Housing
Steel
Blackened
Bolt
Steel
Hardened
Pressure spring
Stainless steel AISI 303
Seal
Rubber NBR (Perbunan®)
Identification of type SS:
Housing with 2 longitudinal markings
RoHS
Steel
Blackened
Bolt
Steel
Hardened
Pressure spring
Stainless steel AISI 303
Seal
Rubber NBR (Perbunan®)
Identification of type SS:
Housing with 2 longitudinal markings
RoHS
Accessory
Screwdrivers GN 611.5(Code no. see table)
Information
Spring plungers GN 616.1 are used for locking as well as for pressure and hold-off functions. Entry of liquids and dirt is prevented by the seal.
The slit on the plunger side is used for screwing into pocket holes. For this, a special screwdriver is available as GN 611.5 (see table).
