with Metric Fine Thread, Steel

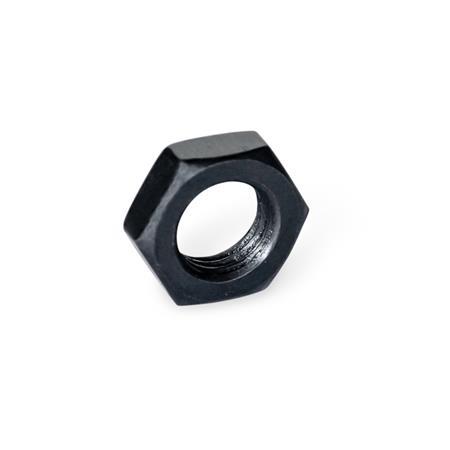

ISO 8675 Thin Hex Nuts

Show filter

d	b	e	s

M 8 x 1	4	14,4	13
M 10 x 1	5	17,8	16
M 12 x 1,5	6	20,1	18
M 16 x 1,5	8	26,8	24
M 20 x 1,5	10	33	30
M 24 x 2	12	39,6	36

Filter combination produces no result.

Specification

Steel
Property class04

BlackenedBT
Zinc plated, blue passivatedZB

RoHS

On request

Other threads

Information

Thin hex nuts ISO 8675 with a fine thread are used in bolted connections, e.g. as lock nuts to lock components and prevent accidental loosening, turning or shifting.

In addition, the nuts are also used together with indexing plungers, cam action indexing plungers, guide bushings or joint heads.

The flat design makes the hex nuts ideal for shorter threads. When mounting indexing plungers, they reduce the adjustment range only slightly, which may be of significance especially when using two lock nuts.
