Softline, Threaded Stud Steel

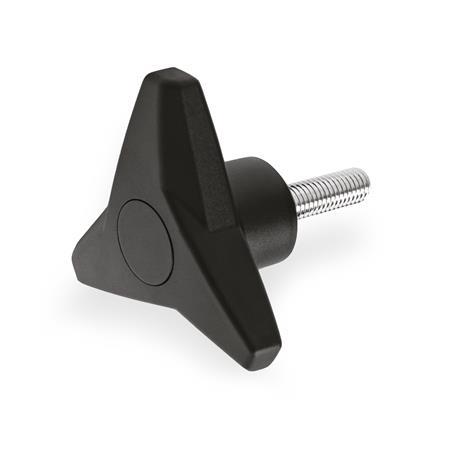

GN 533.6 Three-Lobed Knobs with Threaded Stud
Original design VB.839 p SOFT
| d1 | d2 | Length l | d3 | h1 | h2 |
|---|---|---|---|---|---|
| 63 | M 8 | 25 | 23 | 30,5 | 16 |
| 80 | M 10 | 30 | 30,5 | 37 | 20 |
| 100 | M 12 | 40 | 35 | 43 | 23 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Softline coating is chemically bonded with the plastic core
Threaded stud
Steel zinc plated, blue passivated
Color of the cover cap:
Black, RAL 9005, matte finishDSW
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Technopolymer (Polyamide PA)
- Coated with a soft elastomer (TPE) 70 Shore A
- Glass fiber reinforced
- Temperature resistant up to 130 °C
- Black, matte finish
Softline coating is chemically bonded with the plastic core
Threaded stud
Steel zinc plated, blue passivated
Color of the cover cap:
Black, RAL 9005, matte finishDSW
Orange, RAL 2004, matte finishDOR
Gray, RAL 7035, matte finishDGR
Yellow, RAL 1021, matte finishDGB
Blue, RAL 5024, matte finishDBL
Red, RAL 3000, matte finishDRT
Green, RAL 6017, matte finishDGN
RoHS
Information
The Softline coating of the three-lobed knobs with threaded stud GN 533.6 makes these operating elements particularly “operator friendly” and hence ergonomic.
The soft, non-slip coating improves the contact in both moist (hand perspiration) and in dry conditions, with oily surfaces and at high or very low temperatures.
The use of Softline star knobs is recommended particularly when heavy duty clamping is required.
| How to order |
| ||||||||
GN 533.6-60-M8-25-DBL |
RoHS compliant:
-
-
