with Ball-Type Shoulder
GN 6322 Workholding Bolts

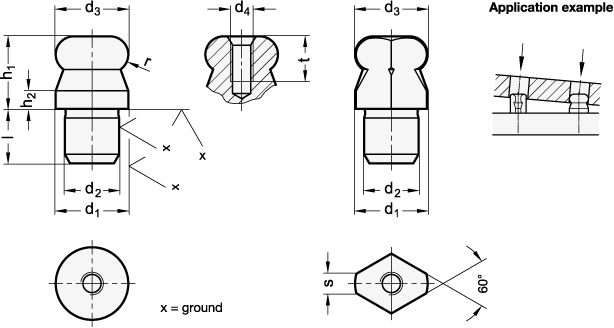

Type
| B | Workholding bolt, high, cylindrical |
| C | Workholding bolt, high, flattened |
| d1 g6 | d2 n6 | d3 -0,01/-0,05 | d4 | h1 | h2 | Length l | s Type C | t | r |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 7 | 10 | M 3 | 10 | 2,5 | 7 | 2,5 | 6 | 2,5 |
| 12 | 8 | 12 | M 4 | 12 | 3 | 8 | 2,5 | 8 | 3 |
| 16 | 12 | 16 | M 5 | 16 | 4 | 12 | 4,3 | 10 | 4 |
| 20 | 14 | 20 | M 5 | 20 | 5 | 14 | 5 | 10 | 5 |
| 22 | 16 | 22 | M 5 | 22 | 5,5 | 16 | 5 | 10 | 5,5 |
| 25 | 18 | 25 | M 5 | 25 | 6 | 18 | 5,6 | 10 | 6 |
Filter combination produces no result.
Specification
Information

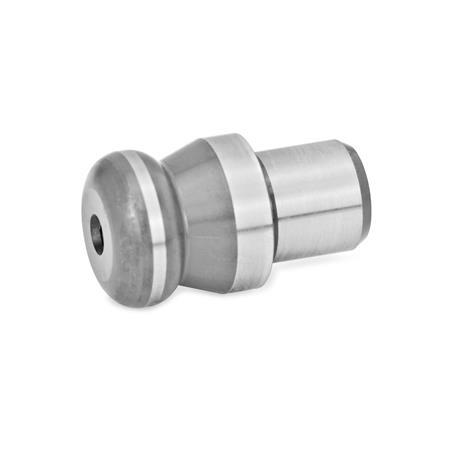

Workholding bolts GN 6322 are used for positioning in bores, with the ball-type shoulder facilitating the insertion into the bore.
The flattened design (type C) helps to compensate tolerances in the spacing of two bores. Another application of this design is to fix parts to be positioned in one direction only.
| How to order |
| ||||||
GN 6322-16-12-B |
