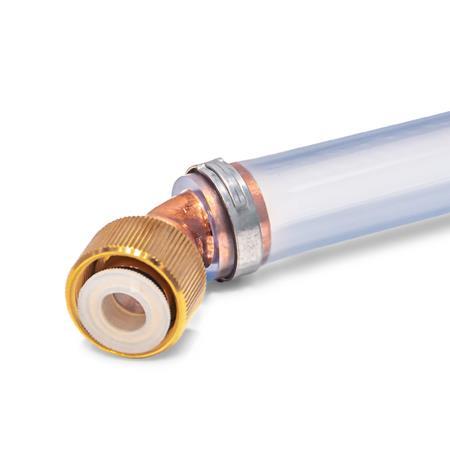

for Oil Drain Valves GN 880, with Drain Hose
GN 880.1 Connector Pieces
Type
| A | Connector straight |
| B | Connector 45° |
| C | Connector 90° |
| Size | d1 Connection thread for GN 880 | Lenght l Hose length | d2 Hose liner | d3 Nominal width Hose | ||
|---|---|---|---|---|---|---|
| 22 | M 22 x 1,5 | 250 | 500 | 1000 | 15 | 14 |
| 26 | M 26 x 1,5 | 250 | 500 | 1000 | 20 | 19 |
Filter combination produces no result.
Specification
Connecting nut with hose liner
Brass
L bend 45° / 90°
Copper
O-ring
Rubber NBR (Perbunan®)
Drain hose
PVC, transparentT
Hose clip
Steel, zinc plated
Plug
Plastic, PE-LD
RoHS
Brass
L bend 45° / 90°
Copper
O-ring
Rubber NBR (Perbunan®)
Drain hose
PVC, transparentT
Hose clip
Steel, zinc plated
Plug
Plastic, PE-LD
RoHS
On request
Other hose lengths
Drain hose
with inside webbing (Nylon)
Drain hose
with inside webbing (Nylon)
Information
Connector pieces GN 880.1 are required when using oil drain valves GN 880.
Screwing on the connector piece will activate the valve plate of the oil drain valve, allowing the oil to flow through the hose into a pan held ready.
The plug prevents remaining oil from dripping out after discharging.
| How to order |
| ||||||||
GN 880.1-22-A-500-T |
