Plastic

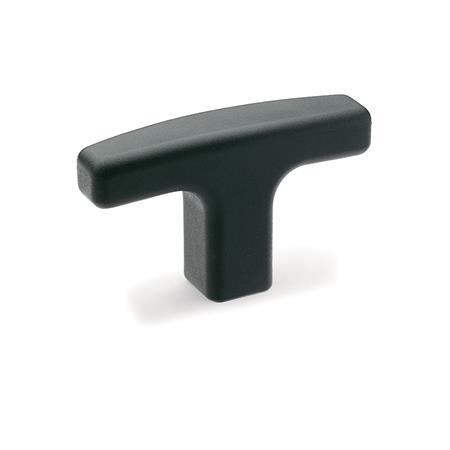

GN 563 T-Handles

ELESA original design L.652 Info

Show filter

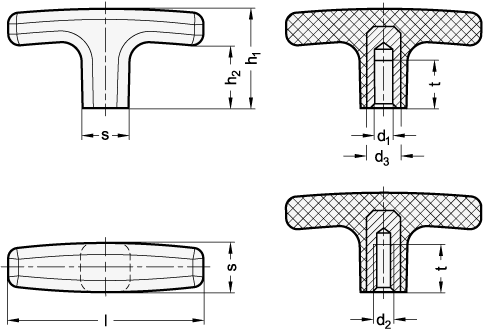

Length l Nominal dimension	Actual dimension	d₁ H9 Bore	d₂ Thread	d₃	h₁	h₂	s Square	t min.

40	41	-	M 5	-	28	18,5	13	16
40	41	B 6	M 6	9	28	18,5	13	16
55	56,5	-	M 5	-	33	21,5	15	15
55	56,5	B 6	M 6	10	33	21,5	15	18
55	56,5	-	M 8	10	33	21,5	15	18
67	68,5	B 6	-	11	37	24,5	16,5	20
67	68,5	B 8	M 8	11	37	24,5	16,5	20
67	68,5	-	M 10	-	37	24,5	16,5	20
80	82	B 6	-	14	41,5	25	20	25
80	82	B 8	M 8	14	41,5	25	20	25
80	82	-	M 10	14	41,5	25	20	25
80	82	-	M 12	14	41,5	25	20	18
93	94	B 6	-	15	46	28,5	21	25
93	94	-	M 10	15	46	28,5	21	25
93	94	-	M 12	15	46	28,5	21	18

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber re-inforced
Temperature resistant up to 130 °C
Black, matte finish

Threaded bushing
Brass

ISO Fundamental Tolerances

Plastic Characteristics

RoHS

On request

T-Handles in orange or red

Information

T-handles GN 563 can be used on operating handles as well as on clamping fixtures. These handles lend themselves ideally for very high manual clamping forces.

How to order
