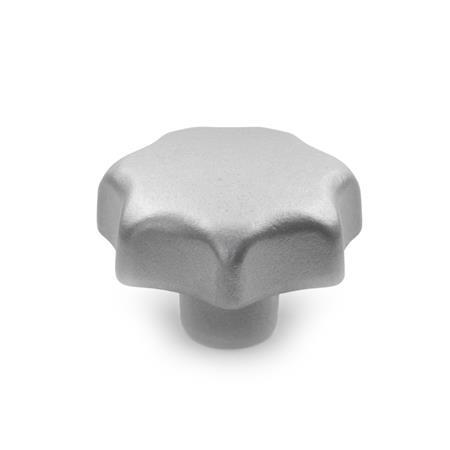

DIN 6336 Stainless Steel Star Knobs, precision casting AISI CF-8, matt shot-blasted
Type
| D | With threaded through bore |
| E | With threaded blind bore |
| d1 | d2 Thread | d4 | h1 | h2 min. | t1 min. | t2 | |
|---|---|---|---|---|---|---|---|
| 32 | M 6 | - | 12 | 20 | 9 | 12 | 10 |
| 40 | M 8 | - | 14 | 25 | 12 | 15 | 13 |
| 50 | M 8 | M 10 | 18 | 32 | 15 | 18 | 16 |
| 63 | M 10 | - | 20 | 40 | 19 | 18 | 20 |
| 63 | M 12 | - | 20 | 40 | 19 | 22 | 20 |
Filter combination produces no result.
Specification
Stainless steel precision castingNI
RoHS
- AISI CF-8
- Matte, shot-blasted
RoHS
Information
| How to order |
| ||||||||
DIN 6336-NI-63-M12-D |
