GN 350.1 Stainless Steel Leveling Sets, Steel, zinc plated / stainless steel

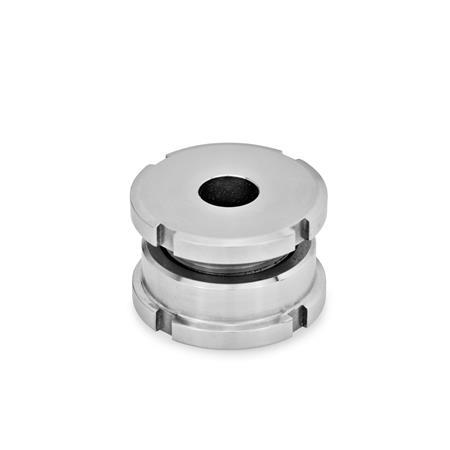

Stainless Steel Leveling Sets Steel zinc plated stainless steel GN 350.1 thumbnail

Stainless Steel Leveling Sets Steel zinc plated stainless steel GN 350.1 sketch

Type

A	Without lock nut
AK	With lock nut

Show filter

d₁	d₂	d₃	h₁ Type A	Type AK	h₂ Type A	Type AK	h₃ Ad- justable range	for screw	Static load F in kN F₁	F₂	C-Spanner

25	6,6	M 15 x 1	15	20	19	24	4	M 6	27,1	20,2	DIN 1810-A25-28
32	6,6	M 20 x 1	18	24	23	29	5	M 6	43,4	36,5	DIN 1810-A30-32
32	9	M 20 x 1	18	24	23	29	5	M 8	43,4	30,8	DIN 1810-A30-32
32	11	M 20 x 1	18	24	23	29	5	M 10	43,4	23,4	DIN 1810-A30-32
45	11	M 30 x 1,5	22	29	29	36	7	M 10	84	64	DIN 1810-A45-50
45	13,5	M 30 x 1,5	22	29	29	36	7	M 12	84	54,8	DIN 1810-A45-50
45	17,5	M 30 x 1,5	22	29	29	36	7	M 16	84	28,9	DIN 1810-A45-50
58	17,5	M 40 x 1,5	28	37	37	46	9	M 16	148	92,9	DIN 1810-A58-62
58	22	M 40 x 1,5	28	37	37	46	9	M 20	148	59	DIN 1810-A58-62
58	26	M 40 x 1,5	28	37	37	46	9	M 24	148	20,3	DIN 1810-A58-62
70	22	M 50 x 1,5	33	44	43	54	10	M 20	225	136	DIN 1810-A68-75
70	26	M 50 x 1,5	33	44	43	54	10	M 24	225	97,3	DIN 1810-A68-75
70	33	M 50 x 1,5	33	44	43	54	10	M 30	225	20,6	DIN 1810-A68-75
80	26	M 60 x 2	38	49	50	61	12	M 24	323	195,3	DIN 1810-A80-90
80	33	M 60 x 2	38	49	50	61	12	M 30	323	118,6	DIN 1810-A80-90
80	39	M 60 x 2	38	49	50	61	12	M 36	323	38,2	DIN 1810-A80-90

Filter combination produces no result.

Specification

Stainless steelNI
AISI 303 (X 10 CrNiS 18-9)

F₁: max.total load

F₂: max. load after deduction
of the max. preload
for screws 6.8, µ = 0,14

Stainless Steel Characteristics

RoHS

Accessory

C-Spanner DIN 1810
(code no. see table)

Information

Stainless steel leveling sets GN 350.1 are used for leveling, adjusting and linking operations if small dimensions are given.

They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.
