Accessory for Profile Systems / Zinc Die Casting

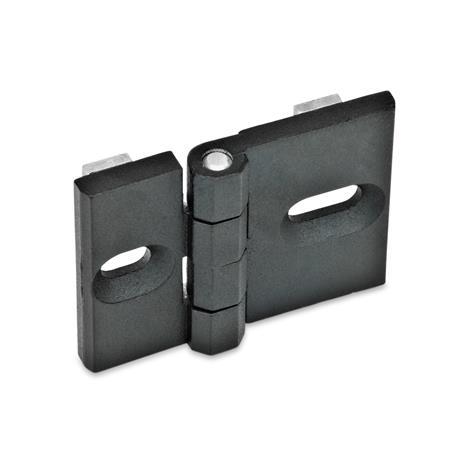

GN 161 Hinges,
| l1 | b | d | h1 | h2 | l2 | l3 | l4 |
|---|---|---|---|---|---|---|---|
| 57 | 6,3 | 6 | 12 | 6,5 | 50 | 28,5 | 28,5 |
| 68 | 6,3 | 6 | 12 | 6,5 | 50 | 28,5 | 40 |
| 80 | 6,3 | 6 | 12 | 6,5 | 50 | 40 | 40 |
Filter combination produces no result.
Specification
Zinc die casting
Pin
Stainless steel
AISI 303
Stainless Steel Characteristics
Load rating information of metal hinges
Swivelling range / Assembly instruction and application example GN 161
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
RoHS
- Powder coated
- Black, textured finish
Pin
Stainless steel
AISI 303
Stainless Steel Characteristics
Load rating information of metal hinges
Swivelling range / Assembly instruction and application example GN 161
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
RoHS
Information
Hinges GN 161 have been designed for commercially available profile rails.
With three different types of hinges only, 66 different groove distances „n“ can be accommodated. To achieve this the positioning elements are set in specially marked recesses in the hinge wings.
The rectangular (8x10 mm) positioning elements, two pieces per hinge wing, will prevent a misalignment. They will also carry the weight of the door.
For screwing the hinges onto the profile rails, special T-Nuts are used.
| How to order |
| ||
GN 161-68 |
RoHS compliant:
-
-
Weight:
-
-
