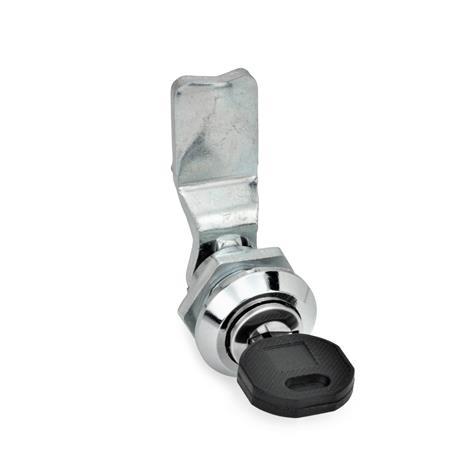

GN 115 Latches

Type

SC	Operation with key (same lock)
SU	Operation with key (different lock)
SCK	Operation with wing knob (same lock)
SUK	Operation with wing knob (different lock)
SCT	Operation with T-Handle (same lock)
SUT	Operation with T-handle (different lock)

Show filter

Latch distance A											d Type SC, SU	Type SCK, SUK, SCT, SUT	h Type SC, SU	Type SCK, SUK, SCT, SUT

4	8	13	16	20	24	28	32	36	40	45	28	32	4	6
6	10	14	18	22	26	30	34	38	42	50	28	32	4	6

Filter combination produces no result.

Specification

Lock housing
Zinc die casting

Housing collar
Chrome plated

Operating elements
Type SCK / SUK / SCT / SUT
Plastic (Polyamide PA)
Black, matte finish

Key
Nickel silver with plastic hand piece

Other parts
Steel, zinc plated, blue passivated

Protection class IP65
Type SCK / SUK / SCT / SUT

Plastic Characteristics

IP Protection Classes

RoHS

Information

Lockable latches GN 115 lock by a turning operation limited to 90° which moves the latch arm in the locked position behind the door frame. The bevels of the latch arm ease the closing of the door.

Latch arms are available with different bend angles to cover a latch arm distance A from 4 to 50 mm.

The latches are delivered with 2 keys and loosely enclosed latch arm. The key can be removed in both end positions.

Types with a standard lock allow every lock to be opened with the same key. For the types with different lock, there are more than 200 different lock variants, whose keys are marked by numbers.
