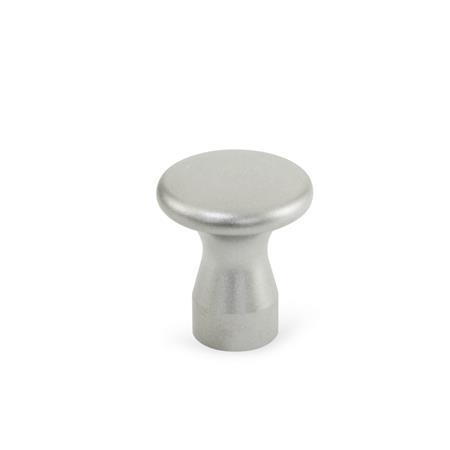

GN 75.5 Waist Shaped Stainless Steel Knobs
Type
| D | With internal thread |
| E | With threaded stud |
| d1 | d2 Type D | d3 Type E | d4 | h | Length l | t min. |
|---|---|---|---|---|---|---|
| 16 | M 5 | M 6 | 10 | 18 | 10 | 7 |
| 20 | M 6 | M 8 | 12 | 24 | 12 | 9 |
| 25 | M 6 | M 8 | 14 | 29 | 14 | 9 |
| 32 | M 8 | M 10 | 18 | 37 | 16 | 12 |
| 36 | M 10 | M 12 | 20 | 42 | 18 | 15 |
Filter combination produces no result.
** not available from stock, requires a minimum order quantity
Specification
On request
Version in stainless steel (A4 quality)
Information
Waist shaped stainless steel knobs GN 75.5 boast a compact and timeless design.
They are made of high-grade stainless steel which makes them the first choice when it comes to applications requiring high standards of hygiene. The favourably designed and non-scooped geomtery helps to prevent damp and the related risk of dirt collecting.
| How to order |
| ||||||||
GN 75.5-25-M8-E-MT |
