for Cam Roller Linear Guide Rails GN 2422
GN 2426 Cam Rollers
Type
| B | Cam roller with bore |
| N | Standard cam roller with centered threaded mounting collar |
| E | Eccentric cam roller with off-center threaded mounting collar |
| h1 Rail | b1 | b2 | d1 | d2 | d3 -0,05 | d4 | d5 -0,008 | l1 | l2 | l3 max. | A/F | t | x |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | 4 | 1,6 | 14 | 12,4 | 6 | M 4 | 5 | 1,8 | 1,5 | 0,5 | 8 | 5 | 0,4 |
| 28 | 7 | 2,4 | 22,4 | 19,2 | 10 | M 5 | 7 | 3,8 | 2,2 | 0,6 | 13 | 8 | 0,5 |
| 35 | 7,5 | 3,3 | 28 | 25,1 | 12 | M 5 | 8 | 4,2 | 2,5 | 0,7 | 15 | 9 | 0,7 |
| 43 | 11 | 5 | 35 | 30,8 | 12 | M 6 | 10 | 4,3 | 2,5 | 0,7 | 15 | 11 | 0,8 |
Specification
- Anti-friction bearing steel, hardened
- Dust and splash water protected
- Permanent lubrication
Sealing disk
Plastic (NBR)2RS
Bearing pivot
Steel
Zinc plated, blue passivated
Assembly and Technical Instructions
Structure, Components, Assembly Examples
Operating instruction GN 2424
RoHS
On request
Information

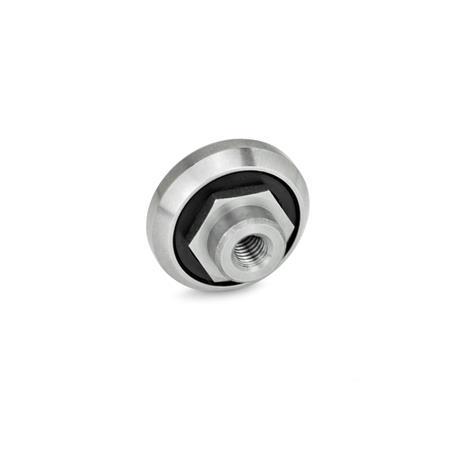

Cam rollers GN 2426 are combined with cam roller linear guide rails GN 2422 to build individual and space-saving linear guide rail systems.
Outer rim surfaces of the rollers are slightly convex, so that in conjunction with the correspondingly-shaped bearing rails (Type XT or XV) there is an accurate and smooth run across four contact points. The same applies to floating bearing rails (Type UT or UV), but with only two contact points.
Combined with the rail, clearance freedom or the initial tension of several rollers can be determined during assembly by using the adjustable eccentrical roller (Type E). The required open-end wrench GN 2424.1 is available separately.
The sealed and permanently lubricated rollers guarantee long service life and superior running performance.
| How to order |
| ||||||
GN 2426-35-N-2RS |
-
-
