Hanser Standard Machine elements|
3.0 Machine parts|
3.6 Moving, transferring via shafts and joints|
DIN 808 |
Standard sheet

DIN 808

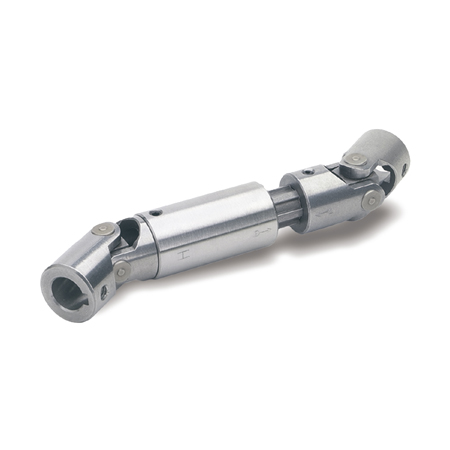

DIN 808 thumbnail

Zoom

Zoom

DIN 808 sketch

Bohrungskennzeichen

B
K
V
SK

Show filter

d₁	d₂	s_₂	sw_₂	x₁									d₃	l₃	l₅	t

16	10	V8	SK8	165-15	185-30	210-60	-	-	-	-	-	-	16	30	52	15
22	10	V10	SK10	140-30	160-40	180-60	230-100	-	-	-	-	-	22	30	48	12
22	12	V10	SK10	-	-	-	-	-	-	-	-	-	22	30	62	18
25	12	V12	SK12	160-30	180-45	200-70	220-80	250-105	280-140	300-150	-	-	26	40	56	13
25	16	V12	SK12	-	-	-	-	-	-	-	-	-	26	40	74	21
28	14	V14	SK14	170-30	180-40	200-60	220-80	250-100	280-140	300-150	350-200	400-250	29	40	60	13
32	16	V16	SK16	190-30	210-40	240-80	250-100	275-115	300-130	380-210	400-230	-	32	40	68	16
32	20	V16	SK16	-	-	-	-	-	-	-	-	-	32	40	86	24
36	18	V18	SK18	230-50	250-70	270-100	290-110	300-115	400-220	500-320	-	-	37	40	74	17
42	20	V20	SK20	250-50	270-70	290-90	320-120	380-180	420-220	500-300	-	-	42	45	82	18
42	25	V20	SK20	-	-	-	-	-	-	-	-	-	42	45	108	31
45	22	V22	SK22	250-30	270-50	290-60	330-100	350-120	470-240	-	-	-	47	50	95	22
50	25	V25	SK25	295-50	310-65	350-100	380-120	420-170	460-200	500-245	-	-	52	50	108	26
50	30	V25	SK25	-	-	-	-	-	-	-	-	-	52	50	132	38
58	30	V30	SK30	330-50	350-70	370-85	400-110	450-170	500-220	540-255	-	-	58	60	122	29
58	32	V30	SK30	-	-	-	-	-	-	-	-	-	58	60	130	33
70	35	V35	-	-	-	-	-	-	-	-	-	-	70	70	140	35
70	40	V30	SK30	-	-	-	-	-	-	-	-	-	70	70	166	47
80	40	V40	-	-	-	-	-	-	-	-	-	-	80	80	160	39
95	50	V50	-	-	-	-	-	-	-	-	-	-	95	90	190	46

Filter combination produces no result.

Specification

RoHS

Information

see also...

How to order

1	Lagerart
2	d₁
3	Bohrungskennzeichen
4	d₂ (s)
5	x₁

DIN 808-W-22-K10-140-30
