Steel, Zinc Plated, with Conical Thread

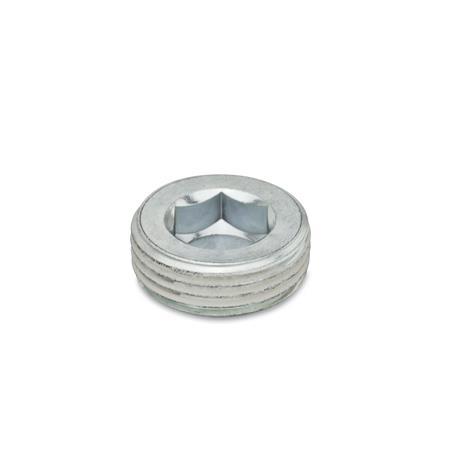

DIN 906 Threaded Plugs
Type
| A | Without thread coating |
| GPC | With micro encapsulation |
| d | h | s | |
|---|---|---|---|
| M 6 x 1 | - | 6 | 3 |
| M 8 x 1 | - | 8 | 4 |
| M 10 x 1 | R 1/8 | 8 | 5 |
| M 12 x 1,5 | - | 10 | 6 |
| M 14 x 1,5 | R 1/4 | 10 | 7 |
| M 16 x 1,5 | - | 10 | 8 |
| M 18 x 1,5 | R 3/8 | 10 | 8 |
| M 20 x 1,5 | R 1/2 | 10 | 10 |
| M 22 x 1,5 | - | 10 | 10 |
| M 24 x 1,5 | - | 12 | 12 |
| M 26 x 1,5 | R 3/4 | 12 | 12 |
| M 30 x 1,5 | R 1 | 12 | 17 |
| M 36 x 1,5 | - | 15 | 19 |
| M 42 x 1,5 | R 1 1/4 | 18 | 22 |
| M 45 x 1,5 | - | 18 | 22 |
| M 48 x 1,5 | R 1 1/2 | 20 | 24 |
Filter combination produces no result.
Specification
SteelST
Thread coating GPC
(Precote 5)
RoHS
- Ultrasonically and tensile tested
- Zinc plated, blue passivated
Thread coating GPC
(Precote 5)
RoHS
Information
Threaded plugs DIN 906 are used to close bore holes with cylindrical internal thread.
The tightness depends on the medium, pressure, temperature and material pairing. The design with GPC thread coating provides a higher degree of safety.
| How to order |
| ||||||
DIN 906-ST-M36x1,5-GPC |
RoHS compliant:
-
-
Weight:
-
-
