with / without Through Stainless Steel Spindle

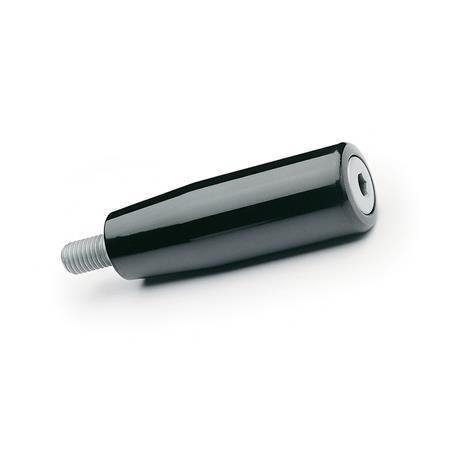

GN 598.2 Revolving Handles
ELESA original design I.281 / I.281+x-SST
Type
| A | With threaded bolt |
| E | Without threaded bolt |
| d1 | d2 6g Type A | d3 +0,3/+0,1 Type E | d4 | d5 | l1 | l2 | l3 | l4 | l5 | A/F | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 18 | M 6 | - | 8 | 15 | 12 | 40 | 13 | 0,3 | 39 | 35 | 4 |
| 21 | M 8 | - | 10 | 17 | 14 | 50 | 15 | 0,5 | 49 | 43 | 5 |
| 23 | M 8 | M 10 | 12 | 19 | 16 | 65 | 17 | 0,5 | 64 | 56 | 6 |
| 26 | M 10 | - | 13 | 21 | 17 | 80 | 18 | 0,5 | 79 | 70 | 6 |
| 28 | M 10 | - | 14 | 22 | 19 | 90 | 18 | 0,5 | 89 | 79 | 8 |
| 31 | M 12 | - | 16 | 25 | 20 | 102 | 20 | 1 | 100 | 89 | 8 |
Filter combination produces no result.
Specification
PlasticKU
Duroplast (Phenolic PF)
Spindle
Stainless steel AISI 304
RoHS
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
Spindle
Stainless steel AISI 304
RoHS
Information
The outstanding feature of revolving handles GN 598.2 is their highly robust design. Type E is suitable for use in connection with user-specific threaded bolts.
| How to order |
| ||||||||
GN 598.2-KU-31-M12-A |
