with Internal Thread
GN 409.2 Positioning Elements
Type
| B | Smooth contact face |
| K | Spherical contact face |
| R | Serrated contact face |
| h Type B: ±0,01 Type K/R: ±0,1 | d1 | d2 Type B/R | t min. | A/F | e Width across corners |
|---|---|---|---|---|---|
| 15 | M 8 | 17 | 6 | 17 | 19,4 |
| 20 | M 10 | 19 | 10 | 19 | 21,9 |
| 20 | M 12 | 22 | 10 | 22 | 25,2 |
| 25 | M 8 | 17 | 12 | 17 | 19,4 |
| 25 | M 12 | 22 | 15 | 22 | 25,2 |
| 30 | M 10 | 19 | 15 | 19 | 21,9 |
| 30 | M 12 | 22 | 18 | 22 | 25,2 |
| 30 | M 16 | 30 | 20 | 30 | 33 |
| 40 | M 10 | 19 | 15 | 19 | 21,9 |
| 40 | M 12 | 22 | 18 | 22 | 25,2 |
| 50 | M 12 | 22 | 18 | 22 | 25,2 |
| 50 | M 16 | 30 | 24 | 30 | 33 |
Filter combination produces no result.
Specification
Steel
RoHS
- Hardened
- Blackened
RoHS
Information

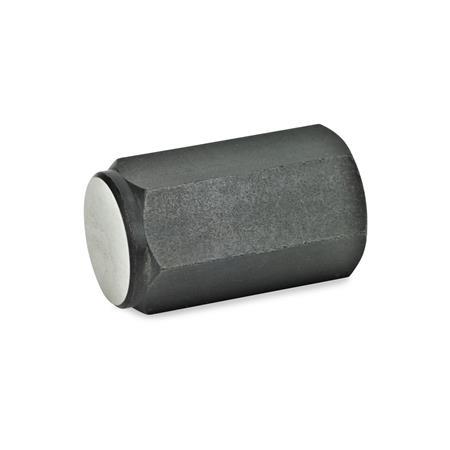

Positioning elements GN 409.2 with female thread are designed for use as locating plungers, stops and thrust blocks.
| How to order |
| ||||||
GN 409.2-25-M8-R |
RoHS compliant:
-
-
Weight:
-
-
