Accessory for Profile Systems, without Guide Step

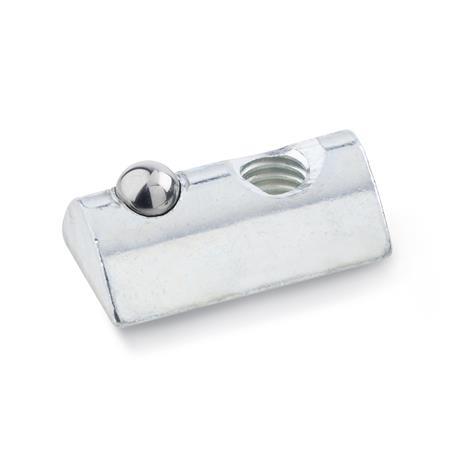

GN 506.1 T-Nuts, Steel, zinc plated
| b | d1 | d2 | e +0,5 | h1 | h2 | m | For slot width a | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 8 -0,1 | M 3 | M 4 | M 5 | - | 3 | 12 | 4,25 | 0,7 | 4 | 5 |
| 10 +0,3 | M 3 | M 4 | M 5 | M 6 | 4 | 17,5 | 6,25 | 1,15 | 5 | 6 |
| 14 -0,2 | M 4 | M 5 | M 6 | M 8 | 5 | 22,5 | 7,4 | 1,7 | 6,8 | 8 |
Filter combination produces no result.
Specification
Steel
Zinc plated, blue passivated
Ball
Stainless steel
Spring
Stainless steel
RoHS
Zinc plated, blue passivated
Ball
Stainless steel
Spring
Stainless steel
RoHS
Information
T-nuts GN 506.1 can be turned into position, i.e. they can be inserted at any point along the slot.
The spring-loaded element (ball / thrust spring) prevents unwanted movement of the nut in the slot, which is particularly useful for vertically oriented T-slots.
As an example T-nuts GN 506.1 can be used to fit hinges to commercially available extrusion rails.
| How to order |
| ||||
GN 506.1-10-M6 |
