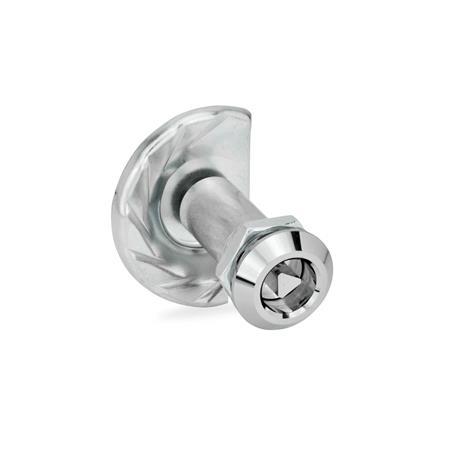

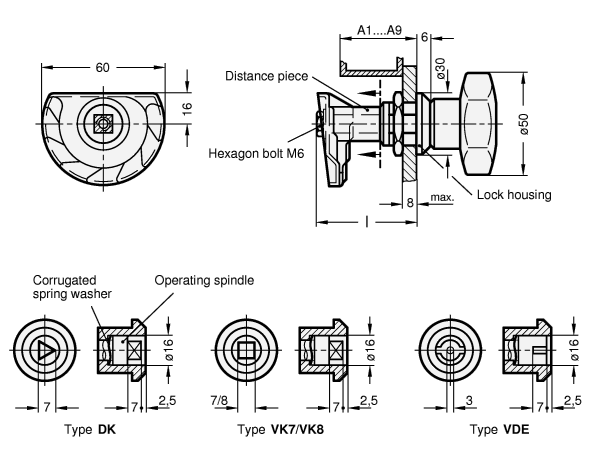

GN 119 Latches
Type
| SG | With star knob |
| DK | With triangular spindle |
| VK7 | With square spindle |
| VK8 | With square spindle |
| VDE | With double bit |
| Clamping range A1 ... A9 (Door + frame thickness) | A1...A9 | |||||||
|---|---|---|---|---|---|---|---|---|
| A 1 (l=35) | A 2 (l=40) | A 3 (l=45) | A 4 (l=50) | A 5 (l=55) | A 6 (l=60) | A 7 (l=65) | A 8 (l=70) | A 9 (l=75) |
| 17 - 25 | 22 - 30 | 27 - 35 | 32 - 40 | 37 - 45 | 42 - 50 | 47 - 55 | 52 - 60 | 57 - 65 |
Filter combination produces no result.
Specification
Lock housing / Operating bolt
Zinc die casting, chrome plated
Cam latch
Sheet steel
Zinc plated, blue passivated
Distance piece
Aluminum
Star knobs GN 5337.2
Plastic (Polypropylene PP)
Black, matte finish
RoHS
Zinc die casting, chrome plated
Cam latch
Sheet steel
Zinc plated, blue passivated
Distance piece
Aluminum
Star knobs GN 5337.2
Plastic (Polypropylene PP)
Black, matte finish
RoHS
Accessory
Socket Keys GN 119.2Protective Caps GN 120
Opening Handles GN 120.1
Information
Latches GN 119 have a pulling-in range of 10 mm. Locking is achieved by turning the latch clockwise.
see also...
| How to order |
| ||||
GN 119-VK8-A3 |
