with Axial Lock (Ball Retainer)

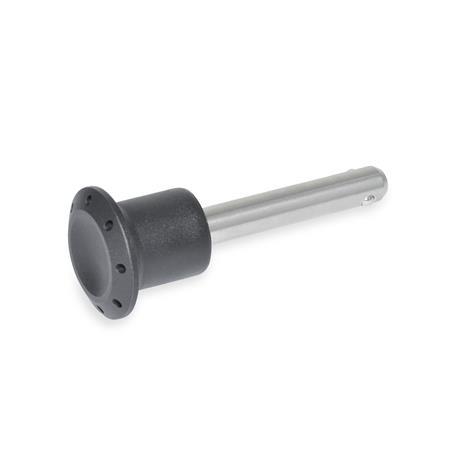

GN 124.2 Stainless Steel Locking Pins
| d1 -0,04/-0,08 | l1 | d2 | d3 | k | l2 | l3 | Locating bore | Axial holding force in N ≈ | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6 | 10 | 15 | 20 | 25 | 30 | 50 | 26 | 17,5 | 6,5 | 22 | 5 | 6 | 8 |
| 8 | 15 | 20 | 25 | 30 | 50 | - | 26 | 17,5 | 8,7 | 22 | 6,3 | 8 | 15 |
| 10 | 15 | 20 | 25 | 30 | 50 | - | 34 | 23 | 12 | 28,5 | 8,7 | 10 | 30 |
| 12 | 20 | 30 | 40 | 50 | - | - | 34 | 23 | 14,5 | 28,5 | 9,5 | 12 | 32 |
Filter combination produces no result.
Specification
Pin
Stainless steel AISI 303
Knob
Plastic
Technopolymer (Polyamide PA)
Ball
Stainless steel AISI 420C
Pressure spring
Stainless steel AISI 631
Application Video Locking Pins with Ball Lock
Load Capacity of Ball Lock Pins / Locking Pins
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Stainless steel AISI 303
Knob
Plastic
Technopolymer (Polyamide PA)
- black-gray
- Temperature resistant up to 80 °C
Ball
Stainless steel AISI 420C
Pressure spring
Stainless steel AISI 631
Application Video Locking Pins with Ball Lock
Load Capacity of Ball Lock Pins / Locking Pins
Stainless Steel Characteristics
Plastic Characteristics
RoHS
Accessory
Ball Chains GN 111Retaining Cables GN 111.2
Information
Stainless steel locking pins GN 124.2 are used for quick fixing, connecting and locking of various jig and fixture systems.
The locking balls are held in position by a pressure spring and are therefore not rigidly locked. The bolts can be quickly and easily inserted and removed from the locating hole.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
see also...
| How to order |
| ||||
GN 124.2-10-20 |
