Plastic

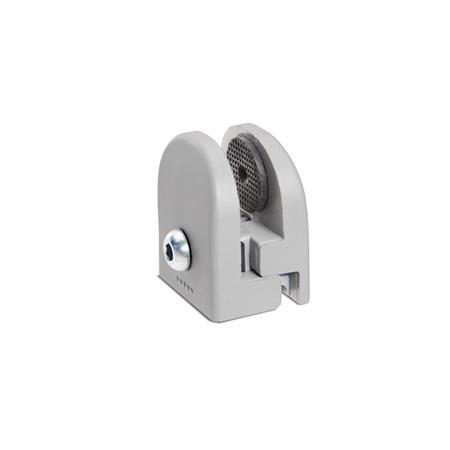

GN 649 Panel Support Clamp
Original design PC
Type
| E | Mounting on plane surface |
| b | s Clamping range | Spacers |
|---|---|---|
| 35 | 3,1 = s < 4,1 | - |
| 35 | 4,1 = s < 5,1 | 5 mm |
| 35 | 5,1 = s < 6,1 | 6 mm |
| 35 | 6,1 = s < 7,1 | 7 mm |
| 35 | 7,1 = s < 8,0 | 8 mm |
Filter combination produces no result.
Specification
Clamping jaw
Plastic
Technopolymer (Polyamide PA)
Rubber pad
Elastomer (TPE)
Spacer
Technopolymer (Polyamide PA)
Clamping screw M5
Steel
Zinc plated, blue passivated
RoHS
Plastic
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Gray, RAL 7042, matte finish
- Temperature resistant up to 70 °C
Rubber pad
Elastomer (TPE)
- 70 Shore A
- Black
- Temperature resistant up to 70 °C
Spacer
Technopolymer (Polyamide PA)
- Gray, RAL 7042, matte finish
- Temperature resistant up to 70 °C
Clamping screw M5
Steel
Zinc plated, blue passivated
RoHS
Information
The panel support clamp GN 649 comply with Mechanical Engineering Directive 2006 / 42 / EG (captivity of the mounting element when open).
The two clamping jaws remain connected also when open by means of a pin sliding into a groove. The clamping screw (M5) is also captive.
The rubber pad is sheathed, i.e. firmly connected to the clamping jaws. Its structured surface prevents it from sticking to the plate element.
Using spacers, panels with thicknesses ranging from 3 to 8 mm can be clamped. The 4 spacers are included parts of the order.
see also...
| How to order |
| ||||
GN 649-35-E |
