with Two Key Rings
GN 111.4 Spiral Retaining Cables
| l1 ±3 | d1 | l2 max. ≈ | d2 | Static load in N ≈ with key ring | without key ring |
|---|---|---|---|---|---|
| 50 | 14* | 250 | 1 | 50 | 60 |
| 50 | 18** | 250 | 1,3 | 60 | 60 |
| 50 | 24*** | 250 | 1,5 | 60 | 60 |
| 100 | 14* | 500 | 1 | 50 | 60 |
| 100 | 18** | 500 | 1,3 | 60 | 60 |
| 100 | 24*** | 500 | 1,5 | 60 | 60 |
| 200 | 14* | 1000 | 1 | 50 | 60 |
| 200 | 18** | 1000 | 1,3 | 60 | 60 |
| 200 | 24*** | 1000 | 1,5 | 60 | 60 |
Specification
Plastic (Polyuretan PUR)
Black
Fixing loop
Copper, tin-plated
Key rings
Stainless steel
RoHS
Accessory
Key Rings GN 111.3Information

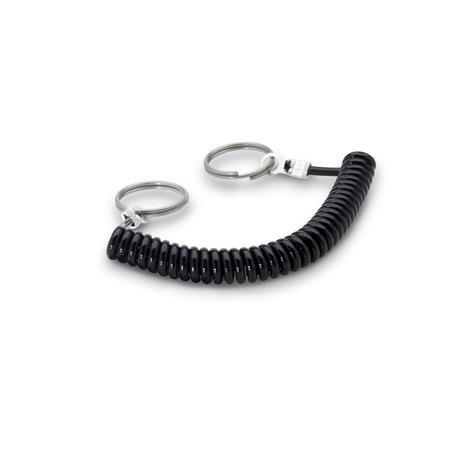

Spiral retaining cables GN 111.4 are used in connection with low weight elements e. g. pins with axial lock and ball lock pins.
They are distinguished for a large "usable length" l2.
The key rings are supplied mounted. Both rings have the same Ø d1.
The details on static loads are guide values given without warranty.
Ideal suitable for ball lock pins and locking pins with axial lock:
* - GN 113.11, GN 113.12 for pins Ø 5, Ø 6
- GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 214.2, GN 214.3, GN 214.6 for pins Ø 5, Ø 6, Ø 8
- GN 113.5, GN 113.6, GN 114.2, GN 114.3, GN 114.6, GN 124.1, GN 124.2 for all pins
** - GN 113.11, GN 113.12, GN 314 for pins Ø 8, Ø 10, Ø 12
- GN 113.1, GN 113.3, GN 113.4, GN 113.7, GN 113.8, GN 113.9, GN 113.10, GN 214.2, GN 214.3, GN 214.6 for pins Ø 10, Ø 12, Ø 16, Ø 20, Ø 25
*** - GN 113.11, GN 113.12, GN 314 for pins Ø 16, Ø 20, Ø 25
| How to order |
| ||||
GN 111.4-200-18 |
