GN 822.7 Mini Indexing Plungers

Mini Indexing Plungers GN 822.7 thumbnail

Type

B	without rest position, with plastic knob
C	with rest position, with plastic knob

Show filter

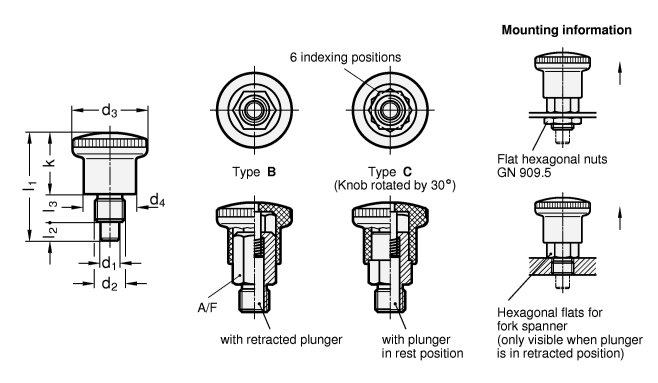

d₁ Pin h9 Bore +0,03/+0,08	d₂		d₃	d₄	l₁	l₂ min.	l₃	k	A/F	Spring load in N ≈ Initial	end

4	M 8	M 8 x 1	21	15	27,5	5	6	16,5	10	4	12
5	M 10	M 10 x 1	25	18	34	6	8	20	12	6	16
6	M 10	M 10 x 1	25	18	34	6	8	20	12	6	16
6	M 12	M 12 x 1,5	28	20	40,5	7	10	23,5	14	10	23
7	M 12	M 12 x 1,5	28	20	40,5	7	10	23,5	14	10	23
8	M 16	M 16 x 1,5	33	23	47,5	10	12	25,5	17	11	35
10	M 16	M 16 x 1,5	33	23	47,5	10	12	25,5	17	11	35

Filter combination produces no result.

Specification

Guide / Plunger pin
Stainless steel AISI 303

Pressure spring
Stainless steel AISI 301

Knob
Plastic (Polyamide PA)

Black, matte finish
Not removable

Load Rating Information

ISO Fundamental Tolerances

Stainless Steel Characteristics

Plastic Characteristics

Metric ISO Thread DIN 13

Metric ISO fine thread DIN 13

RoHS

On request

With red knob

With inch threads

Information

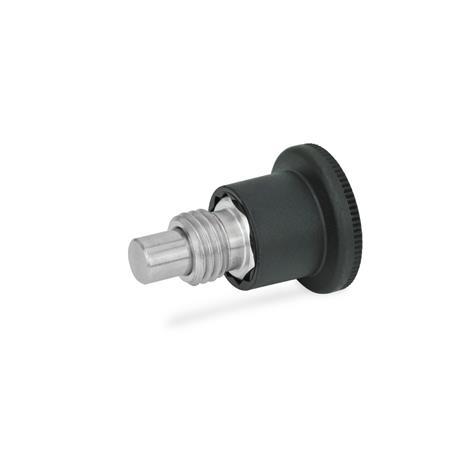

Mini indexing plungers GN 822.7 are distinguished for their small dimensions.

Based on the principle of the mini indexing plungers GN 822, this model combines their clever type of construction with a complete series of all current sizes of bolts and threads. They provide a reasonably priced alternative to the GN 607 / GN 607.1 indexing plungers of the appropriate sizes.

Pulling the plunger pin will release the hexagon nut which can then be tightened with an open-end spanner.

In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the “retraced” position using the indexing lock.
