with Stainless Steel Knob, Pin. AISI 630

GN 113.10 Stainless Steel Ball Lock Pins,

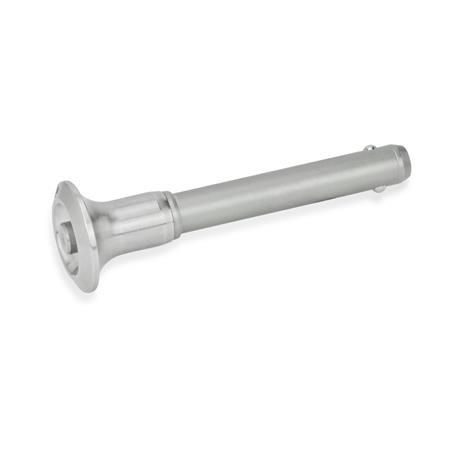

Stainless Steel Ball Lock Pins GN 113.10 thumbnail

Stainless Steel Ball Lock Pins GN 113.10 sketch

Show filter

d₁ -0,04/-0,08	l₁ +0,6															d₂	d₃	d₄	l₂ ±1	l₃ -0,2	Location bore H11

5	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	5,5	23	10,2	6,2	20,2	5
6	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	7	23	10,2	7,2	20,2	6
8	10	15	20	25	30	35	40	45	50	60	70	80	90	100	-	9,5	27	13,2	8,4	26,8	8
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	12	27	13,2	9,9	26,8	10
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	14,5	31	16,4	10,9	32,7	12
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	19	38	23,4	14,5	42,6	16
20	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	24,8	38	23,4	17,4	42,6	20
25	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	30,8	50	30,4	22,3	54,3	25

Filter combination produces no result.

Specification

Plunger
Stainless steel AISI 630
Precipitation-hardened

Knob, push button
Stainless steel AISI 316L

Balls
Stainless steel AISI 420C

Compression spring
Stainless steel
German Material No. 1.4565

Application Video Locking Pins with Ball Lock

Load Capacity of Ball Lock Pins / Locking Pins

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Accessory

Ball Chains GN 111 / GN 111.5

Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

Information

Stainless steel ball lock pins GN 113.10 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Ball lock pins GN 113.10 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
