GN 548.2 Plugs, With female thread|
Standard sheet

Plastic

GN 548.2 Plugs, With female thread

Product details
Order / Request
CAD data

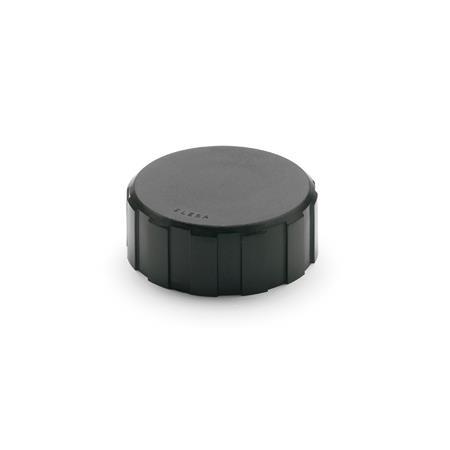

Plugs With female thread GN 548.2 thumbnail

ELESA Original design T.470 Info

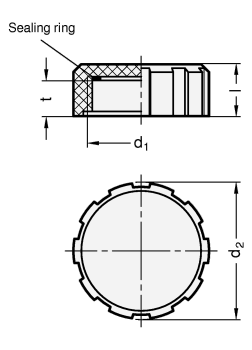

Plugs With female thread GN 548.2 sketch

Show filter

d₁	d₁	d₂	Length l	t

G 1	-	42	16	11
G 2	M 60 x 2	70	26	18

Filter combination produces no result.

Specification

Plastic (Polyamide PA)

Temperature resistant up to 100 °C
Black, matte finish

Seal
Rubber NBR (Perbunan^®)

Elastomer Characteristics

Plastic Characteristics

RoHS

Information

How to order

d₁

GN 548.2-G1

This could also be interesting...

GN 548.1
Plugs, with / without dipstick (Plastic | with screw)

RoHS compliant: Info

Weight:
