Plastic
GN 84 Base Plate Connector Clamps
ELESA original design BAG2-120

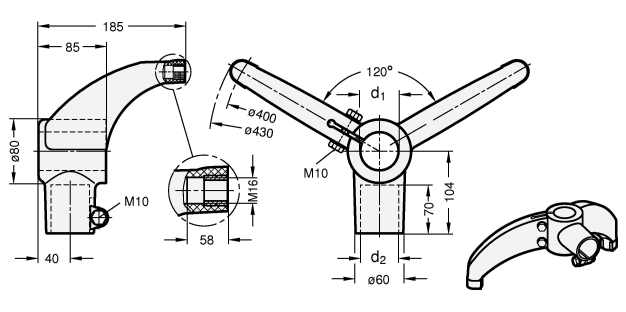

| d1 Bore | d2 Bore | for tube outside-Ø | standard description in inch | |
|---|---|---|---|---|
| B 42,4 | B 42,4 | - | 42,4 | 1 1/4 " |
| B 48,3 | B 42,4 | B 48,3 | 48,3 | 1 1/2 " |
| B 60,3 | B 42,4 | B 48,3 | 60,3 | 2 " |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Hexagon screws DIN 931
Stainless steel AISI 304
Hexagon nuts DIN 934
Stainless steel AISI 304
Washers
Stainless steel AISI 304
RoHS
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Hexagon screws DIN 931
Stainless steel AISI 304
Hexagon nuts DIN 934
Stainless steel AISI 304
Washers
Stainless steel AISI 304
RoHS
