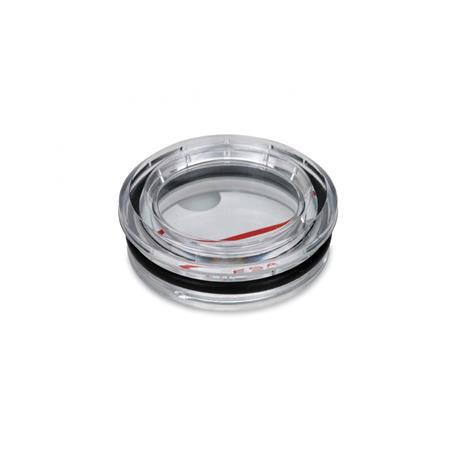

Crystal Clear Plastic, Without Thread
GN 542 Oil Sight Glasses, Resistant up to 100°C
ELESA Original design HE.
Type
| A | With reflector |
| B | Without reflector |
| d1 Window glass | d2 H11 Bore-Ø | d3 | b min. | l1 | l2 |
|---|---|---|---|---|---|
| 9 | 17 | 18 | 5 | 7 | 3 |
| 12 | 20 | 21 | 6 | 7 | 3 |
| 17 | 26 | 28 | 6 | 7 | 3 |
| 20 | 30 | 32 | 7 | 8 | 4 |
| 25 | 35 | 38 | 8 | 9 | 4 |
| 28 | 40 | 43 | 9 | 10 | 4 |
| 32 | 45 | 47 | 9 | 11 | 5 |
Filter combination produces no result.
Specification
Housing
PlasticNO
Crystal clear Polycarbonat (PC)
Seal
Rubber NBR (Perbunan®)
Reflector
Aluminum
RoHS
PlasticNO
Crystal clear Polycarbonat (PC)
- High mechanical strength
- Temperature resistant up to 100 °C
- Not solvent resistant
- Not alcohol resistant
Seal
Rubber NBR (Perbunan®)
Reflector
Aluminum
- White lacquered
- With red mark for oil level
RoHS
Information
This oil level glass GN 542 does not require a thread.
The window glass is recessed, giving better protection to the window.
Assembly instruction:
Press in the oil level sight glass manually, then possibly use an intermediate layer such as wood or a hammer. Chamfer hole 1x45° and grease slightly the outside surface of the O-ring to make assembly easier.
