with Flange Holes

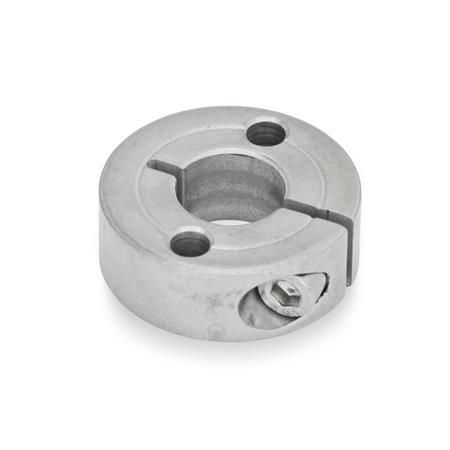

GN 7062.2 Semi-Split Stainless Steel Shaft Collars

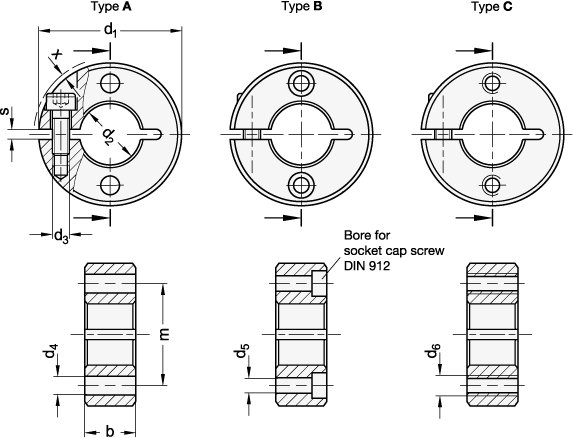

Type
| A | With two through holes |
| B | With two countersunk holes for socket cap screws |
| C | With two tapped holes |
| d1 | d2 H10 recommended shaft tolerance h11 Bore series 1 | Bore series 2 | b ±0,2 | d3 | d4 | d5 | d6 | m Bore series 1 | Bore series 2 | s | x ≈ max. protrusion of cap screw | Adjustable hand lever for d3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | B 12 | - | 11 | M 4 | 4,5 | 3,5 | M 4 | 21 | - | 2,1 | 0,7 | GN 311-30-M4-12-SW |
| 32 | B 14 | - | 11 | M 4 | 4,5 | 3,5 | M 4 | 23 | - | 2,1 | 0,7 | GN 311-30-M4-12-SW |
| 36 | B 15 | B 16 | 13 | M 5 | 5,5 | 4,5 | M 5 | 25,5 | 26 | 2,1 | 1,4 | GN 311-30-M5-13-SW |
| 42 | B 18 | B 20 | 15 | M 5 | 5,5 | 4,5 | M 5 | 30 | 31 | 3 | 0,6 | GN 311-30-M5-15-SW |
| 48 | B 22 | B 25 | 15 | M 5 | 6,5 | 5,5 | M 5 | 35 | 36,5 | 3 | 0 | GN 311-45-M5-16-SW |
| 55 | B 28 | B 30 | 15 | M 6 | 6,5 | 5,5 | M 6 | 41,5 | 42,5 | 3 | 0,5 | GN 311-45-M6-18-SW |
| 60 | B 32 | B 35 | 15 | M 6 | 6,5 | 5,5 | M 6 | 46 | 47,5 | 4 | 0,4 | GN 311-45-M6-19-SW |
| 65 | B 40 | - | 15 | M 6 | 6,5 | 5,5 | M 6 | 52,5 | - | 4 | 0,5 | GN 311-45-M6-20-SW |
Filter combination produces no result.
Specification
Stainless steelNI
Sintered steel AISI 316 LHC
Socket cap screw DIN 912
Stainless steel AISI 304
ISO Fundamental Tolerances
Stainless Steel Characteristics
Highlights / Product information shaft collars
RoHS
Sintered steel AISI 316 LHC
Socket cap screw DIN 912
Stainless steel AISI 304
ISO Fundamental Tolerances
Stainless Steel Characteristics
Highlights / Product information shaft collars
RoHS
Accessory
Adjustable Hand Levers GN 311Damping Washers GN 7062.30
Information
With semi-split stainless steel shaft collars GN 7062.2, e.g., axles are attached to housing, or wheels and washers are installed on shafts.
They can be assembled safely and easily with a high clamping force by reducing the slot height, without damaging the surface of shafts and axles.
The thread d3 for sizes d1 = 30 to 36 is designed as a through hole; for sizes d1 = 42 and larger, it is designed as blind hole.
see also...
| How to order |
| ||||||||
GN 7062.2-55-B28-NI-B |
