with T-Handle, Pin AISI 630

GN 113.8 Stainless Steel Ball Lock Pins

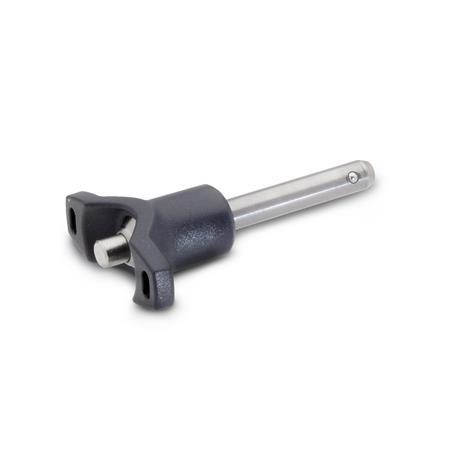

Stainless Steel Ball Lock Pins GN 113.8 thumbnail

Stainless Steel Ball Lock Pins GN 113.8 sketch

Show filter

d₁ -0,04/-0,08	l₁ +0,6															d₂	d₃	d₄	l₂ ±1	l₃	m	Location bore H11

5	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	5,5	40	13,5	6	25	15,5	5
6	10	15	20	25	30	35	40	45	50	60	70	80	-	-	-	7	40	13,5	7,1	25	15,5	6
8	10	15	20	25	30	35	40	45	50	60	70	80	90	100	-	9,5	48	18	8,2	31	20,5	8
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	12	48	18	9,6	31	20,5	10
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	14,5	58	24	10,6	36,5	27,5	12
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	19	58	24	14	36,5	27,5	16
20	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	25	80	34	20,5	46,5	38	20
25	50	60	70	80	90	100	110	120	130	140	150	-	-	-	-	30,8	80	34	22	46,5	38	25

Filter combination produces no result.

Specification

Plunger

Stainless steel AISI 630
Precipitation-hardened

T-Handle
Plastic (Polyamide PA)

Black
Temperature restsitant up to 80 °C

Ball
Stainless steel AISI 420C

Pressure spring
Stainless steel AISI 631

Application Video Locking Pins with Ball Lock

Load Capacity of Ball Lock Pins / Locking Pins

ISO Fundamental Tolerances

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Accessory

Ball chains GN 111 / GN 111.5

Retaining cables GN 111.2

Spiral retaining cables GN 111.4

Information

Stainless steel ball lock pins GN 113.8 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is locating pins which have often to be removed and installed again.

By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.

Stainless steel ball lock pins GN 113.8 have an extreme load capacity, the pin is made of heavy duty, hardened and highly abrasion-resistant stainless steel.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
