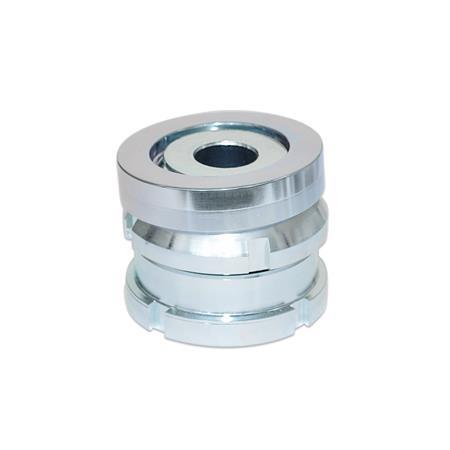

with Spherical Washer, without Locknut, Steel

GN 350.2 Leveling Sets

Show filter

d₁	d₂	h₁ Version low	High	d₃	h₂ Version low	high	h₃ Adjustable range Version low	high	for screw	Static load F in kN F₁	F₂	C-Spanner

25	6,6	22	35	M 15 x 1	26	50	4	15	M 6	40	30,7	DIN 1810-A25-28
32	6,6	26	43	M 20 x 1	31	63	5	20	M 6	65	55,7	DIN 1810-A30-32
32	9	26	43	M 20 x 1	31	63	5	20	M 8	65	48	DIN 1810-A30-32
32	11	26	43	M 20 x 1	31	63	5	20	M 10	65	37,9	DIN 1810-A30-32
45	11	34	54	M 30 x 1,5	41	79	7	25	M 10	120	92,9	DIN 1810-A45-50
45	13,5	34	54	M 30 x 1,5	41	79	7	25	M 12	120	80,4	DIN 1810-A45-50
45	17,5	34	54	M 30 x 1,5	41	79	7	25	M 16	120	45,5	DIN 1810-A45-50
58	17,5	44	70	M 40 x 1,5	53	102	9	32	M 16	210	136	DIN 1810-A58-62
58	22	44	70	M 40 x 1,5	53	102	9	32	M 20	210	90	DIN 1810-A58-62
58	26	44	70	M 40 x 1,5	53	102	9	32	M 24	210	37	DIN 1810-A58-62
70	22	50	83	M 50 x 1,5	60	123	10	40	M 20	330	210	DIN 1810-A68-75
70	26	50	83	M 50 x 1,5	60	123	10	40	M 24	330	157	DIN 1810-A68-75
70	33	50	83	M 50 x 1,5	60	123	10	40	M 30	330	53	DIN 1810-A68-75
80	26	56	94	M 60 x 2	68	144	12	50	M 24	495	322	DIN 1810-A80-90
80	33	56	94	M 60 x 2	68	144	12	50	M 30	495	218	DIN 1810-A80-90
80	39	56	94	M 60 x 2	68	144	12	50	M 36	495	101	DIN 1810-A80-90

Filter combination produces no result.

Specification

SteelST, 1.7225 (42 CrMo 4 V)
Zinc plated, blue passivated

F₁: max.total load

F₂: max. load after deduction
of the max. preload
for screws 8.8, µ = 0,125

RoHS

Accessory

C-Spanner DIN 1810
(code no. see table)

Information

Leveling sets GN 350.2 are used for leveling, adjusting and linking operations. The spherical washer allows precise installation of two non parallel planes at a required gradient up to ≈ 4°.

They comprise a threaded upper sleeve and an internal threaded lower sleeve. The fine thread allows a stepless and precise setting and locking using the C-Spanner DIN 1810. A locking ring serves as a height limiter for the max. height.
