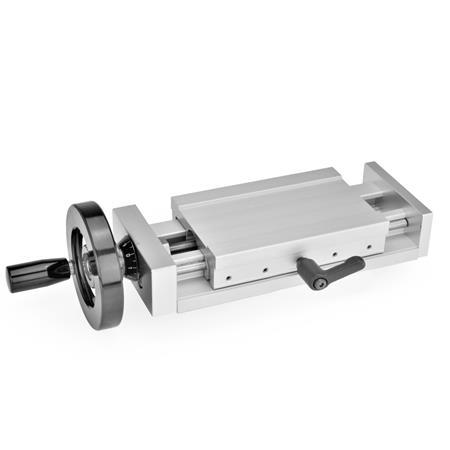

GN 900 Adjustable Slide Units
Identification no.
| 1 | Without adjustable handle |
| 2 | With adjustable hand lever |
Type
| D | with control knob |
| H | with handwheel |
| DN | with control knob and digital position indicator GN 954, type AN |
| DR | with control knob and digital position indicator GN 954, type AR |
| HN | with handwheel and digital position indicator GN 954, Type AN |
| HR | with handwheel and digital position indicator GN 954, Type AR |
| S | Without adjustable spindle and operating element |
| b | Length l1 - Stroke l2 | d1 | d2 | d3 | d4 | d5 | h1 | h2 | h3 | h4 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 50-5 | 55-10 | 60-15 | 65-20 | M4 x 0,5 | M 3 | 14 | - | - | 9,3 | 16 | 17 | 4 |
| 50 | 95-25 | 120-50 | 145-75 | 170-100 | M6 x 1 | M 4 | 17 | 50 | 22 | 13 | 22,5 | 23 | 7 |
| 80 | 145-25 | 170-50 | 195-75 | 220-100 | M8 x 1 | M 5 | 22 | 80 | 22 | 20,5 | 35,5 | 36 | 10 |
| 120 | 185-25 | 210-50 | 235-75 | 260-100 | M10 x 1 | M 5 | 34 | 100 | 34 | 26,3 | 45 | 46 | 13,8 |
Filter combination produces no result.
| b | h5 | h6 | h7 | h8 | l3 | l4 | l5 | l6 | l7 | l8 | l9 | l10 | l11 | l12 | l13 | s | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 3 | 33 | - | - | 45 | 4 | 6 | 20 | - | - | - | - | - | 28 | 22 | 16 | 1 |
| 50 | 4,5 | 47 | 29 | 18 | 70 | 6 | 12 | 20 | 22 | 52 | 24 | 33 | 57 | 36 | 30 | 30 | 1,5 |
| 80 | 10 | 51 | 37 | 10 | 120 | 8 | 16 | 24 | 31 | 55 | 27 | 33 | 66 | 25 | 30 | 50 | 2 |
| 120 | 10 | 57 | 45 | 5 | 160 | 10 | 18 | 34 | 46 | 69 | 41 | 33 | 81 | 25 | 30 | 80 | 2 |
Filter combination produces no result.
Specification
Slides / end plates
Aluminum press formed
Anodized extrusion, natural color
Guide shafts
Stainless steel
Drive
Fixing screws
Stainless steel
Control knob / scale ring
Aluminum
Black anodized
RoHS
Aluminum press formed
Anodized extrusion, natural color
Guide shafts
Stainless steel
Drive
- Lead spindle / ball bearing
Stainless steel - Lead nut
Plastic
Fixing screws
Stainless steel
Control knob / scale ring
Aluminum
Black anodized
RoHS
Information
Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations.
These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way.
For fine adjustment there is a scale ring graduated in increments of 0,05 mm, with digital position indicator 0,02 mm.
Furthermore this adustable slide units (type D, with control knob) is rust proof.
