Cylindrical, for Guide Bushings DIN 172 / DIN 179

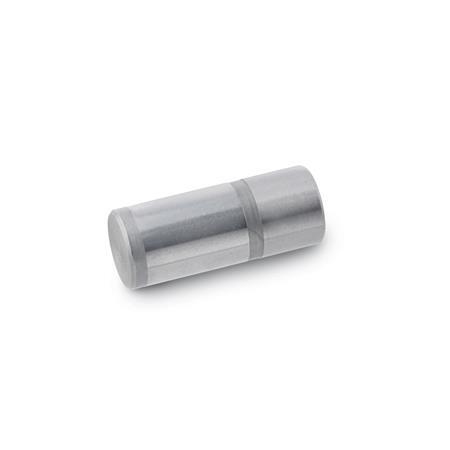

GN 771.1 Guide Pins
| d p6/h6 | l1 | l2 | l3 |
|---|---|---|---|
| 4 | 16 | 8 | 1,5 |
| 5 | 18 | 8 | 1,5 |
| 6 | 22 | 10 | 1,5 |
| 8 | 24 | 10 | 2 |
| 10 | 28 | 12 | 2 |
| 12 | 30 | 12 | 2,5 |
| 16 | 36 | 16 | 2,5 |
Filter combination produces no result.
Specification
Accessory
Guide Bushings DIN 172 / DIN 179Information
Guide pins GN 771.1 are used in combination with DIN 172 / DIN 179 guide bushings.
The shaft tolerance p6 guarantees a perfect pressfit in a mounting borehole H7. The spigot l3 makes the installation easier.
| How to order |
| ||||||
GN 771.1-5-18-8 |
