Spindle Steel, Zinc Plated, with Internal Thread

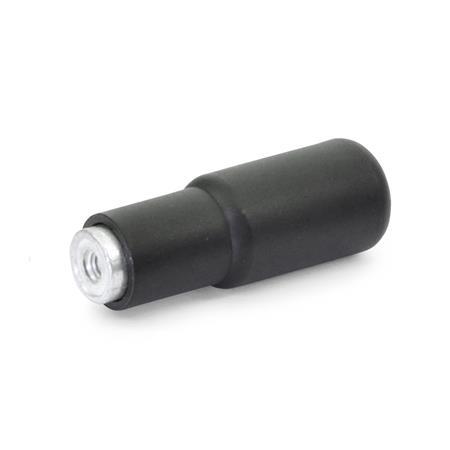

GN 798.2 Revolving Handles, plastic, axle part steel, zinc plated
| d1 | d2 | d3 | d4 | l1 | l2 | l3 ≈ | t |
|---|---|---|---|---|---|---|---|
| 16 | M 5 | 10 | 13 | 41,5 | 15 | 2,5 | 10 |
| 18 | M 5 | 10 | 14,5 | 56 | 19 | 2,5 | 10 |
| 22 | M 6 | 14 | 18,5 | 59 | 21 | 2,5 | 12 |
| 24 | M 6 | 14 | 18,5 | 74 | 27 | 2,5 | 12 |
| 25 | M 8 | 16 | 20 | 84 | 30 | 2,5 | 14 |
Filter combination produces no result.
Specification
PlasticKT
Technopolymer (Polyamide PA)
Spindle
Steel
Zinc plated, blue passivated
RoHS
Technopolymer (Polyamide PA)
- Temperature resistant up to 90 °C
- Black, matte finish
Spindle
Steel
Zinc plated, blue passivated
RoHS
Information
Typical in design are the revolving handles GN 798.2 with their stepped shape consisting of two cylinders giving the operator a better grip.
| How to order |
| ||||||
GN 798.2-KT-24-M6 |
