with Collar

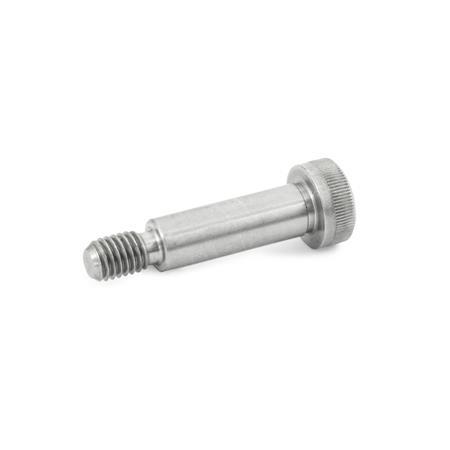

ISO 7379 Stainless Steel Shoulder Screws
| d1 f9 | d2 | l1 +0,25 | d3 | l2 | l3 | A/F | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 | M 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | - | - | - | - | 7 | 7 | 3 | 2 |
| 5 | M 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | - | - | 9 | 8 | 4 | 2,5 |
| 6 | M 5 | 10 | 12 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | - | - | 10 | 9,5 | 4,5 | 3 |
| 8 | M 6 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | - | - | - | - | 13 | 11 | 5,5 | 4 |
| 10 | M 8 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 16 | 13 | 7 | 5 |
| 12 | M 10 | 16 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 18 | 16 | 9 | 6 |
| 16 | M 12 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | - | - | - | 24 | 18 | 11 | 8 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 304
Adapter dimension d1 ground
RoHS
Adapter dimension d1 ground
RoHS
Information
Stainless steel shoulder screws ISO 7379 are cost-saving construction elements for a wide variety of different uses.
The maximum tightening torque is limited by the relatively small bearing points (shoulders) and by the recesses at the transition point from d1 to d2 and d1 to d3.
The ISO standard sheet allows for screws with or without knurled head.
Standard deviation:
- no information about the concentricity 2 IT 13 and 2 IT 10
- the official ISO standard sheet has the following dimensions for d1 - d2: 6,5-M5 / 13-M10 / 25-M20
- the dimensions 4-M3 and 5-M4 are not included in the official ISO standard sheet
| How to order |
| ||||||||
ISO 7379-10-M8-40-NI |
