Press-On Type

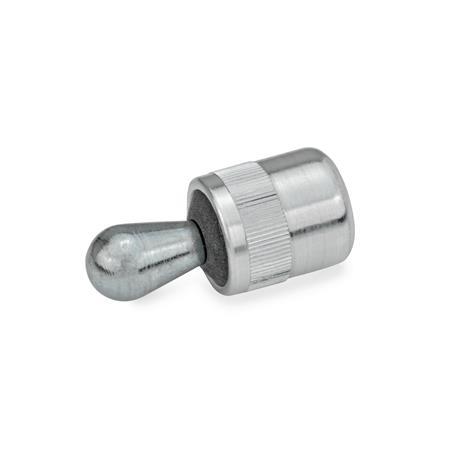

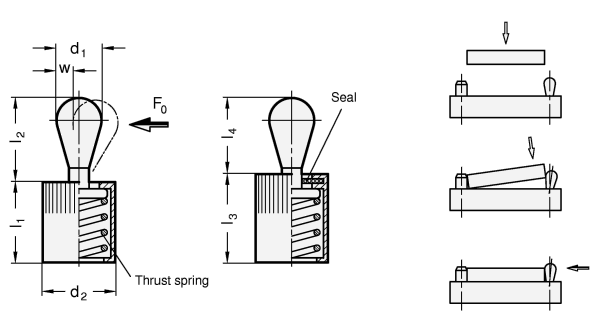

GN 715 Side Thrust Pins
Type
| SA | Thrust pin steel, without seal |
| KA | Thrust pin technopolymer, without seal |
| SB | Thrust pin steel, with seal |
| KB | Thrust pin technopolymer, with seal |
| d1 | Side thrust F0 in N Thrust pin steel Type SA / SB | Thrust pin plastic Type KA / KB | a1 | a2 | d2 | d3 H8 | h | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 10 | 20 | 40 | 10 | 1,5 | 3,5 | 6 | 6 | 7 |
| 5 | 20 | 50 | 100 | 20 | 2,5 | 5,7 | 10 | 10 | 12 |
| 6 | 40 | 75 | 150 | 40 | 3 | 7,7 | 10 | 10 | 12 |
| 8 | 50 | 100 | 200 | 50 | 4 | 8,9 | 12 | 12 | 14 |
| 10 | 100 | 200 | 300 | 100 | 5 | 10,7 | 16 | 16 | 18 |
Filter combination produces no result.
| d1 | l1 -1 | l2 | l3 -1 | l4 | w | x1 | x2 | Code no. for mounting tool |
|---|---|---|---|---|---|---|---|---|
| 3 | 7 | 4 | 7 | 4 | 0,9 | 1 | 0,75 | GN 715.1-3 |
| 5 | 11 | 6,7 | 11,5 | 6 | 1,6 | 1,7 | 1,3 | GN 715.1-5.6 |
| 6 | 11 | 10,7 | 11,5 | 10 | 1,8 | 1,9 | 1,4 | GN 715.1-5.6 |
| 8 | 13 | 13,9 | 14 | 13 | 2,6 | 2,7 | 2,1 | GN 715.1-8 |
| 10 | 17 | 16,7 | 18 | 16 | 3,2 | 3,4 | 2,7 | GN 715.1-10 |
Filter combination produces no result.
Specification
Housing Aluminum
Plain
Type SA / SB
Thrust pin steel, hardened
Zinc plated, blue passivated
Type KA / KB
Thust pin Plastic Polyacetal (POM)
Pressure spring coding
Force
low thrust: gray
medium thrust: black
high thrust: silver
Seal
Rubber NBR (Perbunan®)
Application video spring plungers
ISO Fundamental Tolerances
Elastomer Characteristics
Plastic Characteristics
RoHS
Plain
Type SA / SB
Thrust pin steel, hardened
Zinc plated, blue passivated
Type KA / KB
Thust pin Plastic Polyacetal (POM)
Pressure spring coding
Force
low thrust: gray
medium thrust: black
high thrust: silver
Seal
Rubber NBR (Perbunan®)
Application video spring plungers
ISO Fundamental Tolerances
Elastomer Characteristics
Plastic Characteristics
RoHS
Information
Spring loaded side thrust pins GN 715 are versatile and practical elements for holding, positioning and clamping of workpieces.
They eliminate costly alternatives, are space saving and easy to install. The knurled body requires only a hole tolerance of H8.
For mounting the side thrust pins a suitable mounting tool GN 715.1 is available (see table).
