with Right and Left Hand Thread

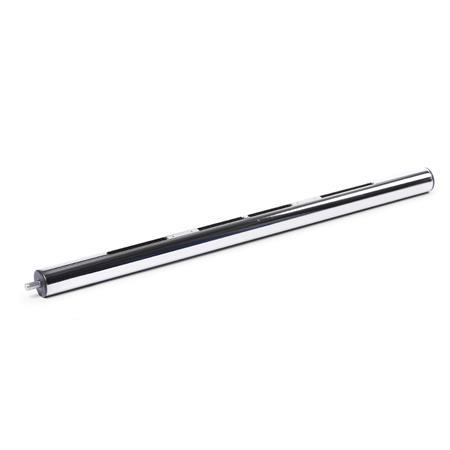

GN 292 Linear Actuators

Type

RL1	Shaft journal at one end
RL2	Shaft journal at both ends

Show filter

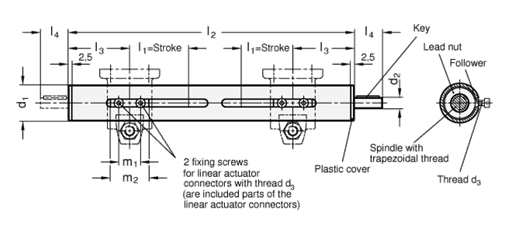

d₁	l₁ Stroke (standard lengths)		max. stroke every	Threaded spindle	d₂	d₃	l₂ Total length	l₃	l₄	m₁	m₂	for parallel key DIN 6885

18	120*	-	167	TR10x3	6	M 3	2xl1+171	70	16	17	24	A2x2x12
30	130*	-	601	TR14x4	8	M 4	2xl1+253	102,5	16	23	38	A2x2x12
40	205*	255*	753	TR20x4	12	M 5	2xl1+299	117,5	17	42	54	A4x4x12
50	300*	350*	748	TR20x4	12	M 6	2xl1+309	120	18	42	54	A4x4x12
60	300*	-	715	TR24x5	14	M 8	2xl1+375	142,5	19	58	70	A5x5x16

Filter combination produces no result.

* usually not available from stock

Specification

Guide tube

Tube DIN 2391
Steel, chrome-platedSCR
Tube DIN 2462
Stainless steel*NI AISI 304

Spindle with trapezoidal thread

Steel respectively
Stainless steel AISI 303
Ball bearing

Lead nut
Gunmetal

End plug
Plastic

Operating instruction

Stainless Steel Characteristics

Handwheels for linear actuators

RoHS

Accessory

Linear actuator connectors, tube clamp connectors and accessory have to be ordered separately.

On request

Special lengths

Information

In addition to the standard stroke lengths specified in the above table for linear actuators GN 292 any stroke inside the maximum stroke length is available.

Besides the extensive range of tube clamp connectors there are a number of different components for fixing the linear actuators and to build linear actuator connectors.

In order to measure the displacement and positioning of the linear actuator connectors, digital as well as analogue position indicators can be installed and furthermore the guide tube can be provided with a longitudinal scale.
