Plastic

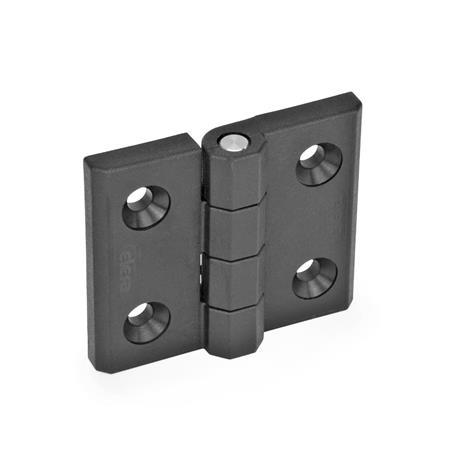

GN 239.3 Hinges
ELESA original design CFM.
Identification
| SH | 2x2 bores for countersunk screw |
| l1 | l2 | h2 | h4 | m1 | m2 |
|---|---|---|---|---|---|
| 70 | 60 | 7,5 | 14,5 | 45 | 34 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA-HP)
Pin
Stainless steel AISI 303
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
RoHS
- Glass fiber reinforced
- Black, matte finish
- Temperature resistant up to 80 °C
Pin
Stainless steel AISI 303
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
RoHS
Information
The GN 239.3 hinges without switch have the same design like hinges GN 239.4 and serve as auxiliary hinge, e.g. for large doors requiring several hinges.
see also...
| How to order |
| ||||||
239.3-70-60-SH |
RoHS compliant:
-
-
Weight:
-
-
