GN 480.8 Stainless Steel Thread Adapters

Product details
Order / Request
CAD data

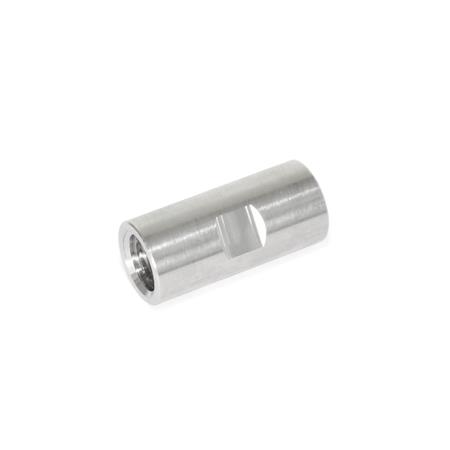

Stainless Steel Thread Adapters GN 480.8 thumbnail

Stainless Steel Thread Adapters GN 480.8 sketch

Show filter

d₁ h9	d₂ - t Thread-Ø - Thread depth		l₁	A/F

D 10	M 5 - 8,5	-	30	8
D 10	M 6 - 10,5	-	30	8
D 12	M 7 - 11,5	-	30	10
D 12	M 8x1 - 10	-	30	10
D 15	M 10x1 - 10	G 1/8 - 8	35	13
D 16	M 12x1,5 - 14	G 1/8 - 8	35	14
D 20	M 16x1,5 - 15	G 3/8 - 12	40	18
D 20	G 1/4 - 12	-	40	18

Filter combination produces no result.

Specification

Stainless steel AISI 304
Plain, unfinished

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Information

Stainless steel thread adapters GN 480.8 can attach e.g. air nozzles or coolant nozzles and their feed pipes with mounting clamps and hold them in position.

The d₂ thread diameters are compatible with the most common bolt diameters.
