GN 536 Stainless Steel Knurled Nuts, AISI 304, matt shot-blasted

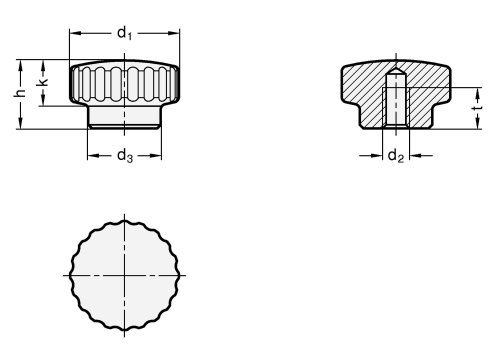

| d1 | d2 | d3 | h | k | t min. |
|---|---|---|---|---|---|
| 20 | M 5 | 14 | 13 | 8,5 | 8 |
| 24 | M 6 | 16 | 15 | 10,5 | 9 |
| 28 | M 8 | 18 | 17 | 12,5 | 10 |
Filter combination produces no result.
Specification
Information
The knurling of the stainless steel knurled nuts GN 536 allows a use in an environment with hygienic requirements.
| How to order |
| ||||||
GN 536-20-M5-MT |
RoHS compliant:
-
-
Weight:
-
-
